0015916079

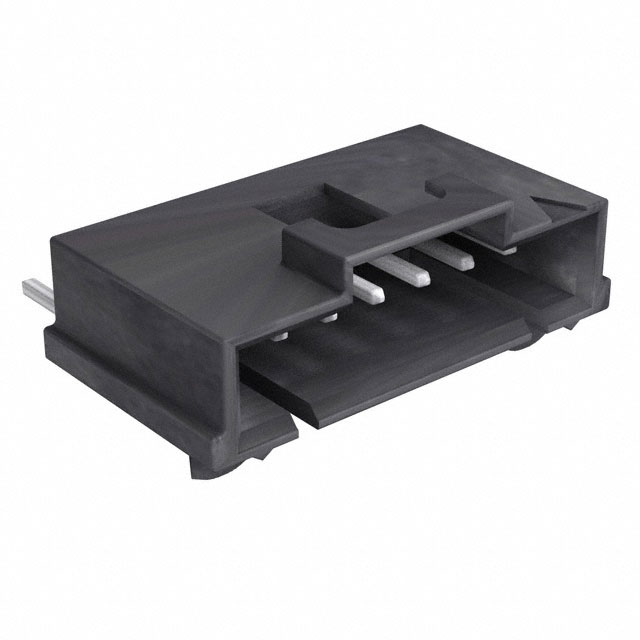

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0015916079 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0015916079 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0015916079 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | SL SMT RA HDR TIN 7CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $1.029 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0015916079 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | SL SMT RA HDR TIN 7CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29796 pcs | Data sheet | 15-91-6xx9 DrawingSL Series Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | SL 70634 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 0015-91-6079 001591-6079 15-91-6079 15916079 70634-0111 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 7 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.215" (5.45mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Surface Mount, Right Angle 7 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 74.8µin (1.90µm) | Contact Finish Thickness - Mating | 74.8µin (1.90µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
