0015912025

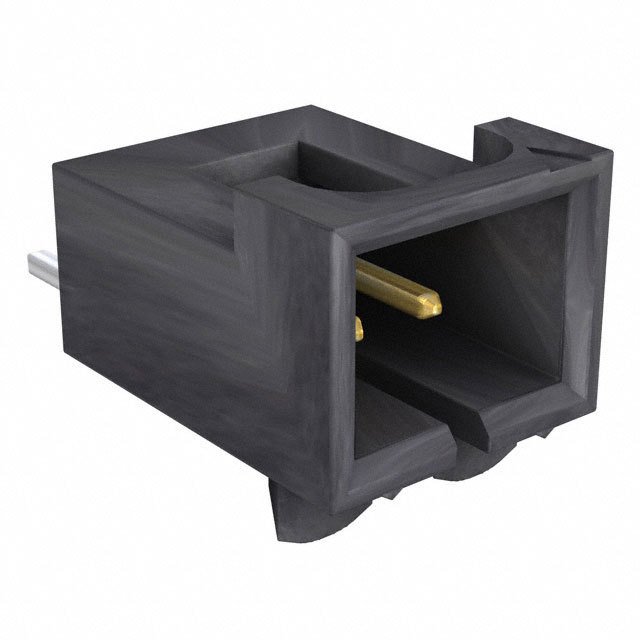

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0015912025 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0015912025 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0015912025 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 2POS .100 R/A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.922 | $0.885 | $0.738 | |||
| 500 pcs | 1830 pcs | 5490 pcs | |||
| $0.627 | $0.516 | $0.48 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0015912025 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 2POS .100 R/A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76055 pcs | Data sheet | 15-91-2025SL Series Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | SL 70634 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 0015-91-2025 0015-91-2025-P 0015912025-P 15-91-2025 15-91-2025-P 15912025 15912025-P 70634-0036 WM1340 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.215" (5.45mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Surface Mount, Right Angle 2 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 74.8µin (1.90µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
