0015801083

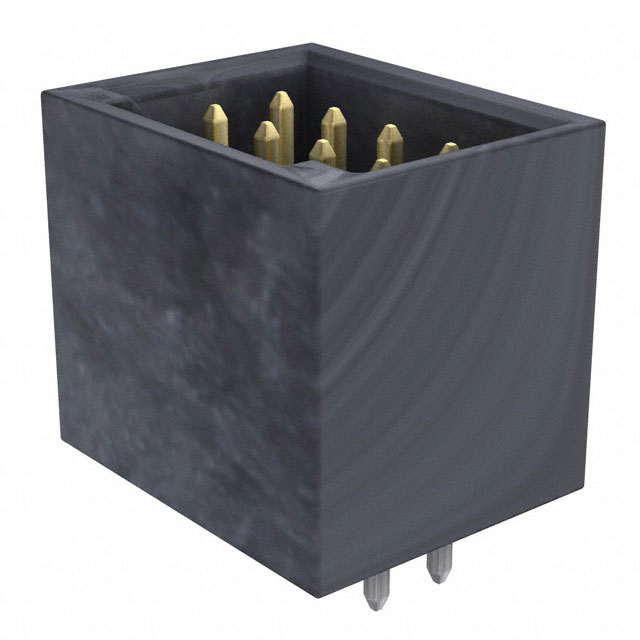

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0015801083 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0015801083 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0015801083 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | COMPONENT CGRID VT SHRD HDR 15 S |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | 0015801083 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | COMPONENT CGRID VT SHRD HDR 15 S | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5513 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | C-Grid 70567 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | 0.570" (14.48mm) |
| Other Names | 0015-80-1083 015-80-1083 15-80-1083 1580-1083 15801083 705670478 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled | Insulation Height | 0.475" (12.07mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Through Hole 8 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze Alloy | Contact Length - Post | 0.130" (3.30mm) |
| Contact Length - Mating | 0.315" (8.00mm) | Contact Finish Thickness - Post | 74.8µin (1.90µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
