0015474077

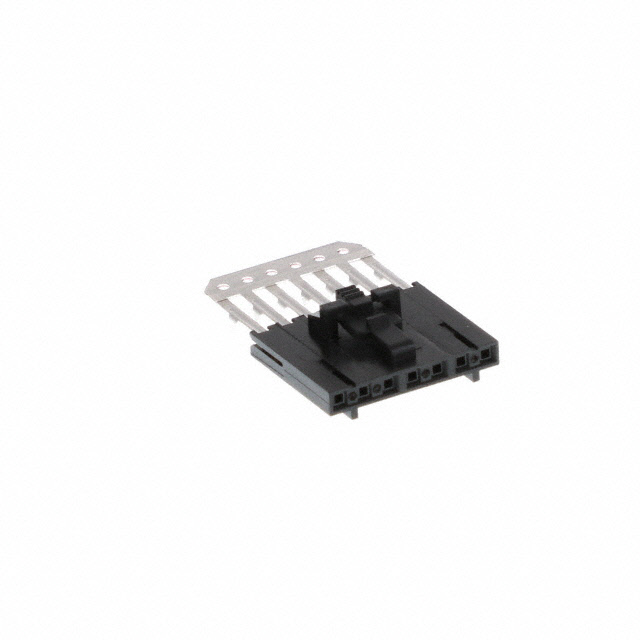

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0015474077 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0015474077 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0015474077 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN CIC FFC RCPT 7POS 2.54MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.902 | $0.866 | $0.794 | $0.757 | $0.721 | |
| 250 pcs | 900 pcs | 1800 pcs | 2700 pcs | ||
| $0.631 | $0.559 | $0.505 | $0.487 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0015474077 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN CIC FFC RCPT 7POS 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73509 pcs | Data sheet | 15474077 |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | IDC | Series | SL 70430 |
| Pitch | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 0015-47-4077 001547-4077 0015474077-ND 15-47-4077 15474077 70430-0496 WM19365 |
Operating Temperature | -40°C ~ 105°C |
| Number of Positions | 7 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 50 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 5 Weeks |
| Locking Feature | Latch Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyester, Glass Filled | Housing Color | Black |
| Height Above Board | - | Flat Flex Type | CIC, FFC |
| Features | - | FFC, FCB Thickness | 0.13 ~ 0.28mm, 0.30mm |
| Detailed Description | 7 Position CIC, FFC Connector Receptacle 0.100" (2.54mm) Free Hanging (In-Line) | Current Rating | - |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector/Contact Type | Receptacle |
| Cable End Type | Straight | Actuator Material | - |
| Actuator Color | - |
