0015453514

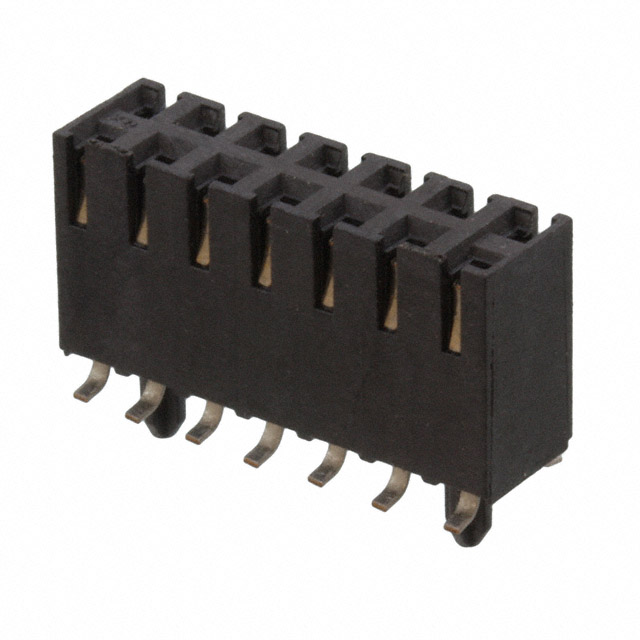

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0015453514 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0015453514 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0015453514 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RCPT 14POS VERT DL SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 816 pcs | 1632 pcs |
|---|---|---|---|---|---|
| $2.37 | $2.272 | $1.876 | $1.481 | $1.353 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0015453514 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RCPT 14POS VERT DL SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25104 pcs | Data sheet | 15453514 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | C-Grid 71395 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | 001545-3514 01545-3514 15-45-3514 1545-3514 15453514 A713950114 WM7194 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.368" (9.35mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | 14 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold |
| Current Rating | 2.5A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 74.8µin (1.90µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
