0015389032

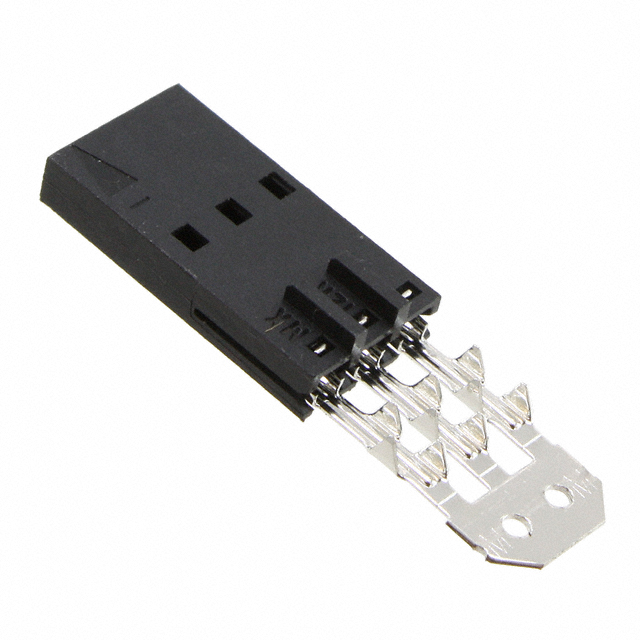

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0015389032 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0015389032 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0015389032 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN CIC FFC PLUG 3POS 2.54MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4200 pcs | ||||
|---|---|---|---|---|---|
| $0.161 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0015389032 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN CIC FFC PLUG 3POS 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 128376 pcs | Data sheet | 15389032 |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | IDC | Series | SL 70431 |
| Pitch | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 0015-38-9032 001538-9032 0015389032-ND 15-38-9032 15389032 70431-0072 WM9513 |
Operating Temperature | -40°C ~ 105°C |
| Number of Positions | 3 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 25 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 5 Weeks |
| Locking Feature | Latch Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polybutylene Terephthalate (PBT) | Housing Color | Black |
| Height Above Board | - | Flat Flex Type | CIC, FFC |
| Features | - | FFC, FCB Thickness | 0.005 ~ 0.11mm, 0.36mm |
| Detailed Description | 3 Position CIC, FFC Connector Plug 0.100" (2.54mm) Free Hanging (In-Line) | Current Rating | - |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 150.0µin (3.81µm) |
| Contact Finish | Tin | Connector/Contact Type | Plug |
| Cable End Type | Straight | Actuator Material | - |
| Actuator Color | - |
