0015381026

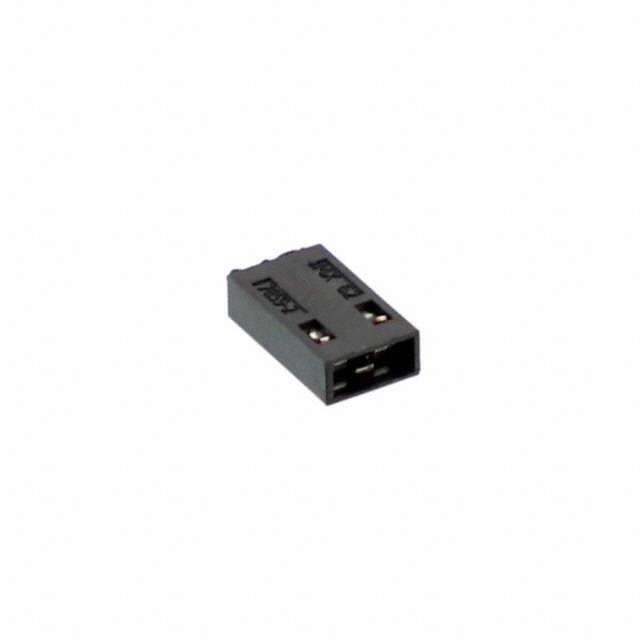

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0015381026 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0015381026 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0015381026 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN SHUNT CLOSED TOP .100 TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.154 | $0.146 | $0.125 | $0.106 | $0.102 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.092 | $0.088 | $0.073 | $0.067 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0015381026 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN SHUNT CLOSED TOP .100 TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 355292 pcs | Data sheet | 15-29-1025,15-38-1026 Prod Spec15-(29,38)-10xx Drawing |
| Category | Connectors, Interconnects | Type | Closed Top |
| Series | C-Grid 7859 | Pitch | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | 0015-38-1026 0015-38-1026-E 0015381026-E 15-38-1026 15-38-1026-E 15-38-1026-ND 15381026 15381026-E 7859-2A164N WM23944 |
| Number of Positions or Pins (Grid) | 2 (1 x 2) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height | 0.347" (8.81mm) | Gender | Female Sockets |
| Detailed Description | 2 (1 x 2) Position Shunt Connector Black Closed Top 0.100" (2.54mm) Tin | Contact Finish Thickness | 150.0µin (3.81µm) |
| Contact Finish | Tin | Color | Black |
