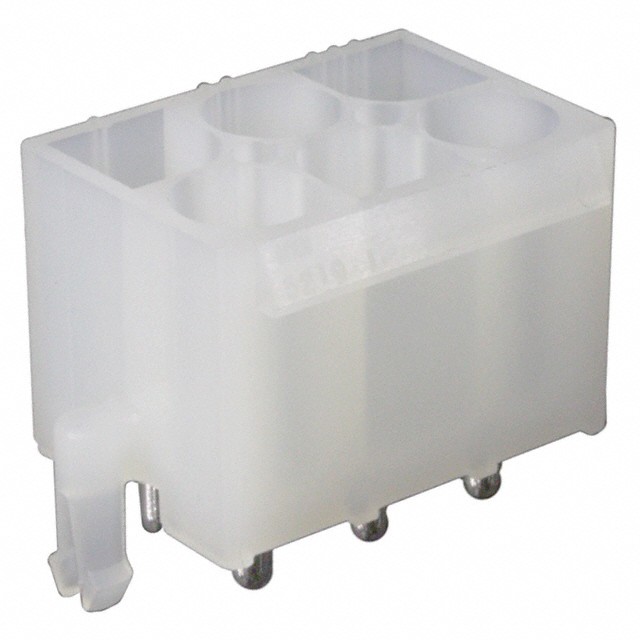

0015311066
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0015311066 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0015311066 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0015311066 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 6POS .093 VERT TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.804 | $0.73 | $0.625 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.521 | $0.447 | $0.396 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0015311066 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 6POS .093 VERT TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 93734 pcs | Data sheet | 15-31-1066 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | 5219 |
| Row Spacing - Mating | 0.264" (6.71mm) | Pitch - Mating | 0.264" (6.71mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 15-31-1066 15311066 5219-06A WM1039 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.591" (15.00mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 6 position 0.264" (6.71mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Telecommunications |
