0015291025

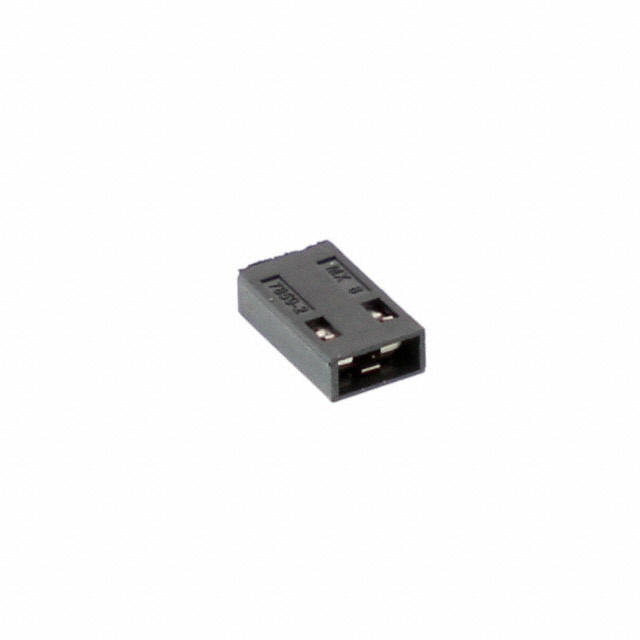

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0015291025 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0015291025 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0015291025 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN SHUNT CLOSED TOP .100 GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.188 | $0.177 | $0.159 | $0.141 | $0.135 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.124 | $0.118 | $0.097 | $0.088 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0015291025 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN SHUNT CLOSED TOP .100 GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 249835 pcs | Data sheet | 15-29-1025,15-38-1026 Prod Spec15-(29,38)-10xx Drawing |
| Category | Connectors, Interconnects | Type | Closed Top |
| Series | C-Grid 7859 | Pitch | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | 0015-29-1025 0015-29-1025-C 0015291025-C 15-29-1025 15-29-1025-C 15-29-1025-ND 15291025 15291025-C 7859-2A554N WM23943 |
| Number of Positions or Pins (Grid) | 2 (1 x 2) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height | 0.347" (8.81mm) | Gender | Female Sockets |
| Detailed Description | 2 (1 x 2) Position Shunt Connector Black Closed Top 0.100" (2.54mm) Gold | Contact Finish Thickness | 15.0µin (0.38µm) |
| Contact Finish | Gold | Color | Black |
