0015286042

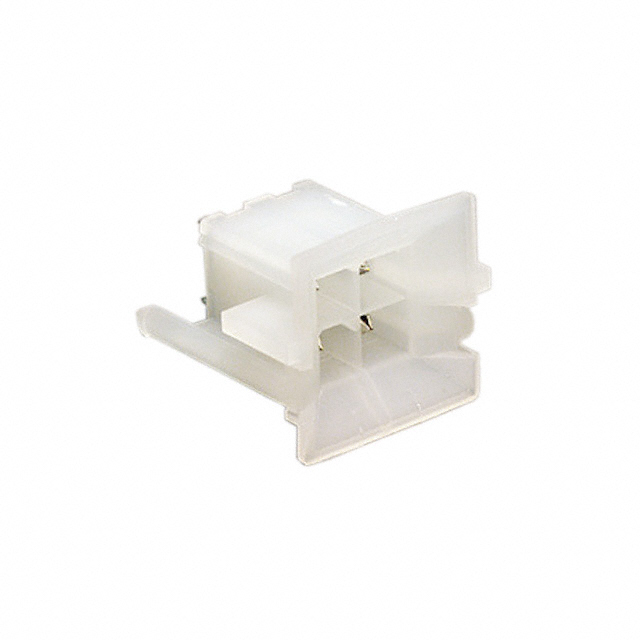

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0015286042 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0015286042 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0015286042 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN VERT HEADER 4POS DUAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.769 | $0.699 | $0.656 | $0.628 | $0.599 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.542 | $0.499 | $0.428 | $0.399 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0015286042 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN VERT HEADER 4POS DUAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 82685 pcs | Data sheet | 15286042 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit BMI 42440 |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0015-28-6042 001528-6042 0015286042-ND 15-28-6042 15286042 A-42440-0422 WM19430 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.555" (14.10mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 4 position 0.165" (4.20mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose, Industrial, Medical, Telecommunications |
