0015244449

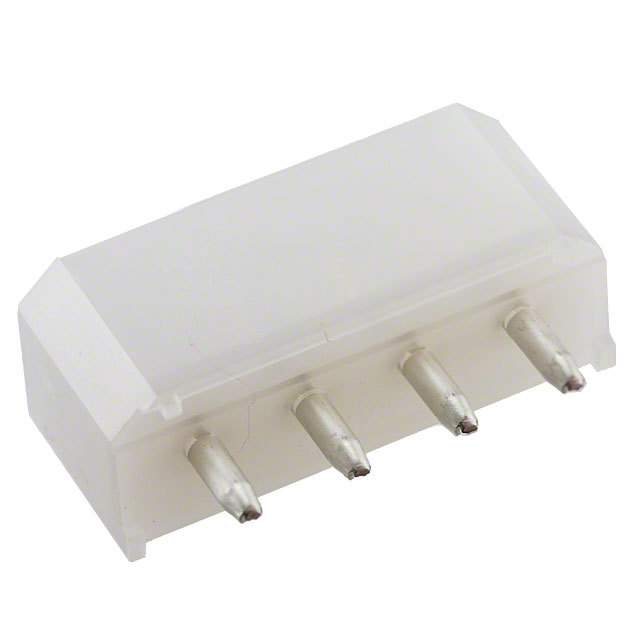

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0015244449 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0015244449 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0015244449 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 4POS .200 VERT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.297 | $0.261 | $0.225 | $0.184 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.164 | $0.143 | $0.136 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0015244449 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 4POS .200 VERT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 139026 pcs | Data sheet | 15-24-4449 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | 8981 |
| Row Spacing - Mating | - | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0015-24-4449 0015244449-ND 15-24-4449 15-24-4449-ND 15244449 A-8981-4V-LF WM9132 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.400" (10.16mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 4 position 0.200" (5.08mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.140" (3.56mm) | Contact Length - Mating | 0.171" (4.34mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
