0010977105

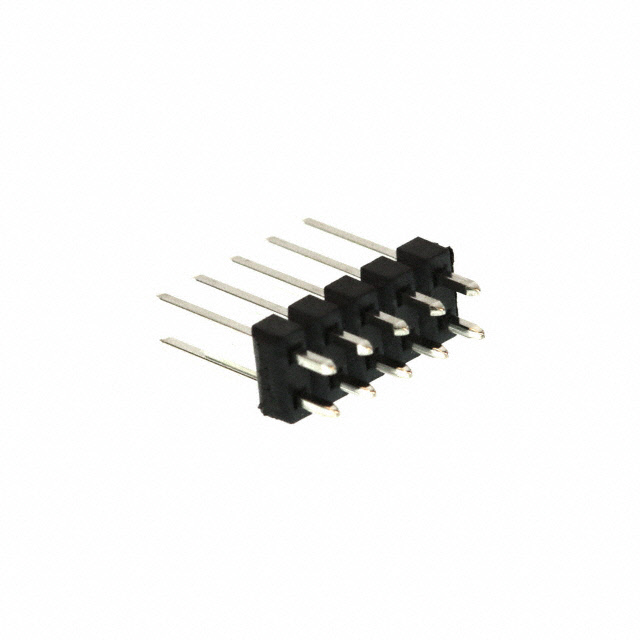

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0010977105 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0010977105 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0010977105 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | BKWY HEADER TIN 10POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.299 | $0.261 | $0.225 | $0.184 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.164 | $0.143 | $0.136 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0010977105 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | BKWY HEADER TIN 10POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 158266 pcs | Data sheet | 0010977105C-GRID® 70280,87 Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | C-Grid 70280 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.520" (13.21mm) |
| Other Names | 0010-97-7105 001097-7105 0010977105-ND 010-97-7105 01097-7105 010977105 10977105 70280-0125 WM19413 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.090" (2.29mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 10 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.110" (2.79mm) | Contact Length - Mating | 0.320" (8.13mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header, Breakaway | Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
