0010897041

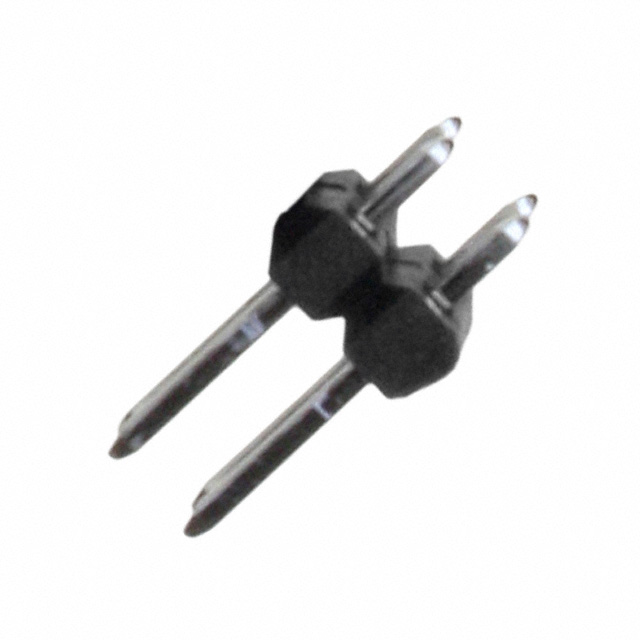

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0010897041 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0010897041 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0010897041 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HDR DUAL 4POS .100 SRT TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.155 | $0.144 | $0.13 | $0.115 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.111 | $0.101 | $0.096 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0010897041 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HDR DUAL 4POS .100 SRT TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 218231 pcs | Data sheet | 70280 Series DrawingC-GRID® 70280,87 Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | C-Grid 70280 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.437" (11.10mm) |
| Other Names | 0010-89-7041 0010-89-7041-E 0010897041-E 10-89-7041 10-89-7041-E 10897041 10897041-E WM26904 WM26904-ND WM50022-04 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled | Insulation Height | 0.090" (2.29mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 4 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.107" (2.71mm) |
| Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header, Breakaway |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
