0010879125

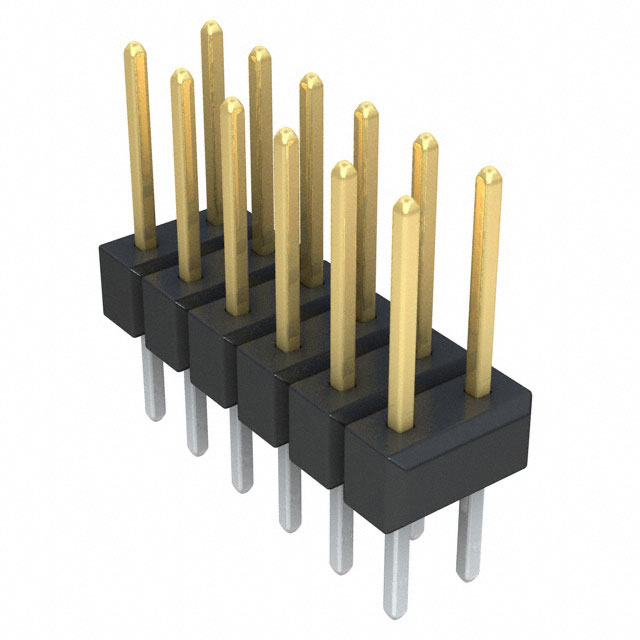

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0010879125 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0010879125 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0010879125 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | BKWY HDR 30 SAU 12POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3500 pcs | ||||
|---|---|---|---|---|---|
| $0.213 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0010879125 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | BKWY HDR 30 SAU 12POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 111512 pcs | Data sheet | 0010879125C-GRID® 70280,87 Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | C-Grid 70280 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.485" (12.32mm) |
| Other Names | 0010-87-9125 001087-9125 010-87-9125 01087-9125 010879125 10879125 A-70280-0246 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.090" (2.29mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 12 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.155" (3.94mm) | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 74.8µin (1.90µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header, Breakaway | Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
