0010085041

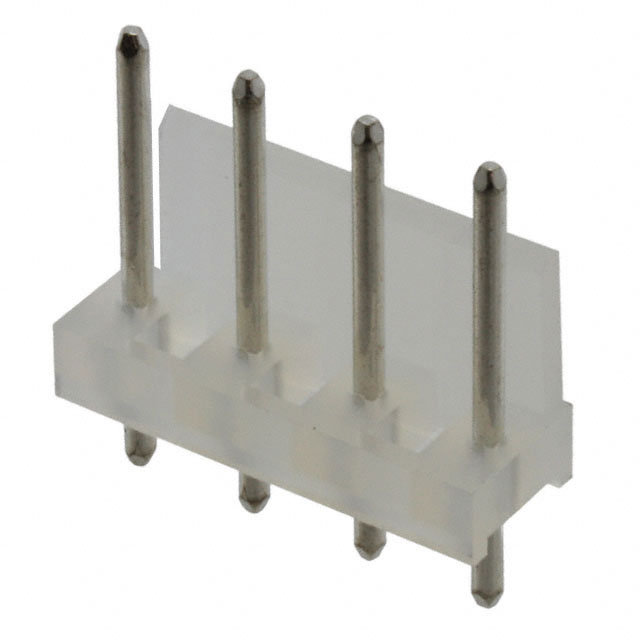

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0010085041 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0010085041 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0010085041 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 5.08MM KK POL-W W/OVD 5SN 4CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.26 | $0.23 | $0.199 | $0.163 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.144 | $0.126 | $0.12 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0010085041 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 5.08MM KK POL-W W/OVD 5SN 4CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 179117 pcs | Data sheet | 0010085041 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 1 Wall | Series | KK 2599 |
| Row Spacing - Mating | - | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Overall Contact Length | 0.750" (19.05mm) |
| Other Names | 0010-08-5041 10-08-5041 10085041 AE-2599M-4A WM2350 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.375" (9.53mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 4 position 0.200" (5.08mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.175" (4.45mm) | Contact Length - Mating | 0.450" (11.43mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Telecommunications |
