0010081042

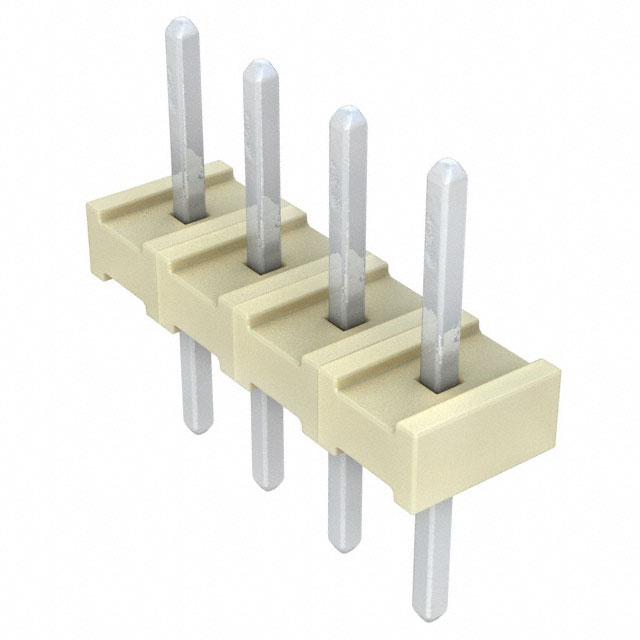

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0010081042 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0010081042 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0010081042 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER VERT 4POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.226 | $0.211 | $0.162 | $0.141 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.116 | $0.102 | $0.095 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0010081042 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER VERT 4POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 254962 pcs | Data sheet | 99020-0087 Prod Spec00100810xx,11xx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | KK 3003 |
| Row Spacing - Mating | - | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Overall Contact Length | 0.937" (23.80mm) |
| Other Names | 0010-08-1042 001008-1042 0010081042-ND 10-08-1042 10081042 300304B WM22524 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.125" (3.18mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 4 position 0.200" (5.08mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.155" (3.94mm) | Contact Length - Mating | 0.657" (16.69mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Telecommunications |
