0009781151

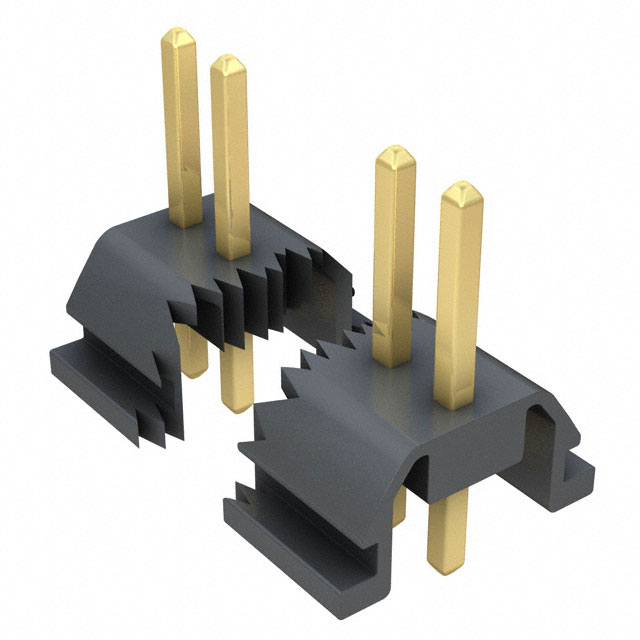

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0009781151 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0009781151 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0009781151 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 15POS VERT GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0009781151 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 15POS VERT GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4098 pcs | Data sheet | 0009781yyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Unshrouded | Series | KK 2220 |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | 1.380" (35.05mm) |
| Other Names | 0009-78-1151 000978-1151 09-78-1151 09781151 A-2220-15A502 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 15 | Mounting Type | Panel Mount, Snap-In; Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Insulation Height | 0.250" (6.35mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Panel Mount, Snap-In; Through Hole 15 position 0.156" (3.96mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.635" (16.13mm) |
| Contact Length - Mating | 0.630" (16.00mm) | Contact Finish Thickness - Post | 20.0µin (0.51µm) |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
