0009652058

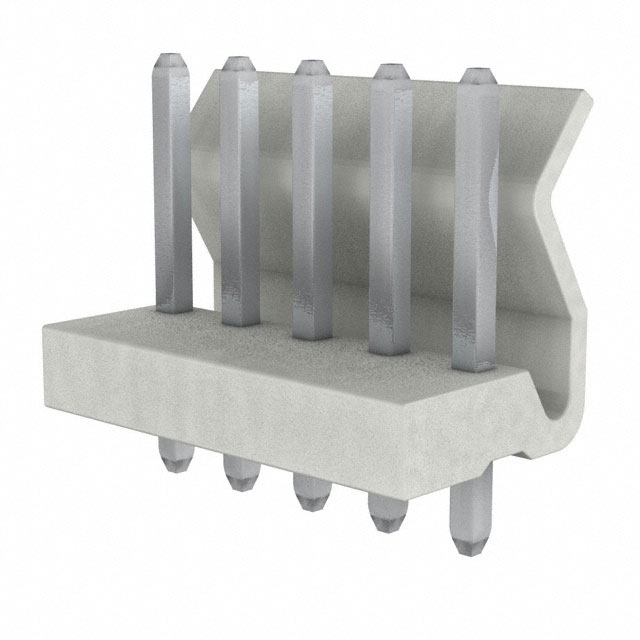

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0009652058 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0009652058 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0009652058 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 5POS 3.96MM VERT TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.204 | $0.192 | $0.147 | $0.128 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.106 | $0.093 | $0.087 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0009652058 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 5POS 3.96MM VERT TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 267827 pcs | Data sheet | 09-65-2058 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Series | KK 5273 |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | 0.687" (17.45mm) |
| Other Names | 09-65-2058 5273-05A 9652058 WM18826 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.482" (12.25mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 5 position 0.156" (3.96mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.142" (3.60mm) | Contact Length - Mating | 0.419" (10.65mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
