0009185954

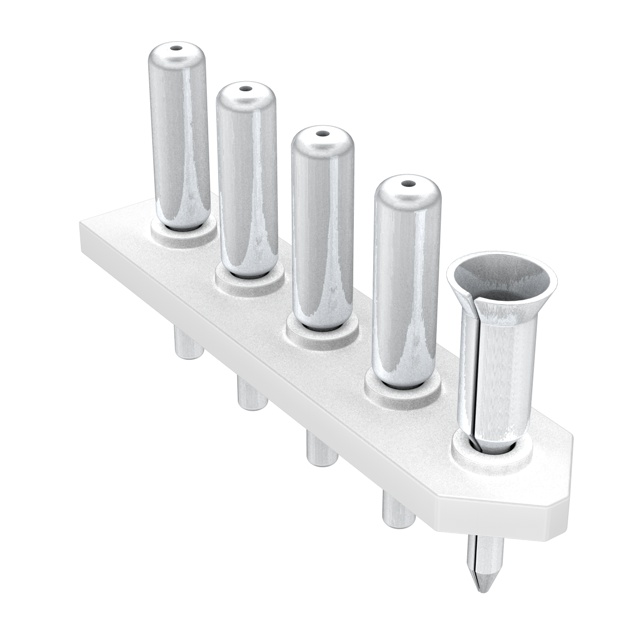

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0009185954 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0009185954 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0009185954 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 093 WAFERCON PCB CONN 5CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0009185954 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 093 WAFERCON PCB CONN 5CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5814 pcs | Data sheet | 0009185954 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Unshrouded | Series | 1840 |
| Row Spacing - Mating | - | Pitch - Mating | 0.198" (5.03mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 0009-18-5954 000918-5954 09-18-5954 0918-5954 1840-05-13 9185954 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | 3 |
| Number of Positions | 5 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Insulation Height | 0.093" (2.38mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 5 position 0.198" (5.03mm) | Current Rating | - |
| Contact Type | Female Socket; Male Pin | Contact Shape | Circular |
| Contact Material | - | Contact Length - Post | 0.172" (4.37mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | General Purpose, Telecommunications |
