0008500400

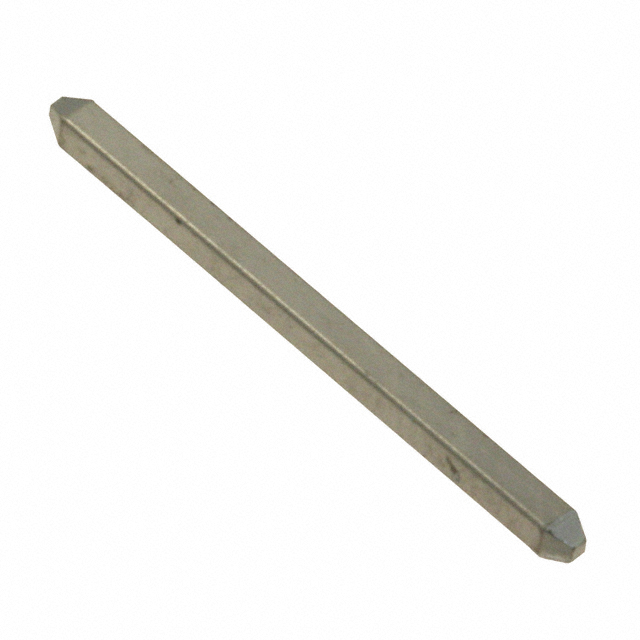

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0008500400 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0008500400 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0008500400 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN PC PIN SQUARE 0.045 TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0008500400 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN PC PIN SQUARE 0.045 TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5052 pcs | Data sheet | 0008500400 Drawing |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Terminal Type | Single Post | Terminal Style | Smooth |
| Series | KK 2161 | Pin Size - Below Flange | 0.045" (1.14mm) Square |
| Pin Size - Above Flange | 0.045" (1.14mm) Square | Packaging | Bulk |
| Other Names | 0008-50-0400 000850-0400 08-50-0400 08500400 2161-92(102) 8500400 |
Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.050" ~ 0.053" (1.27mm ~ 1.35mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Length - Overall | 0.575" (14.61mm) |
| Length - Below Flange | - | Length - Above Flange | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | - |
| Detailed Description | Single Post Terminal Connector Through Hole Tin 0.045" (1.14mm) Square | Contact Material | Brass |
| Contact Finish Thickness | 200.0µin (5.08µm) | Contact Finish | Tin |
| Board Thickness | 0.062" (1.57mm) |
