MADP-011048-TR3000

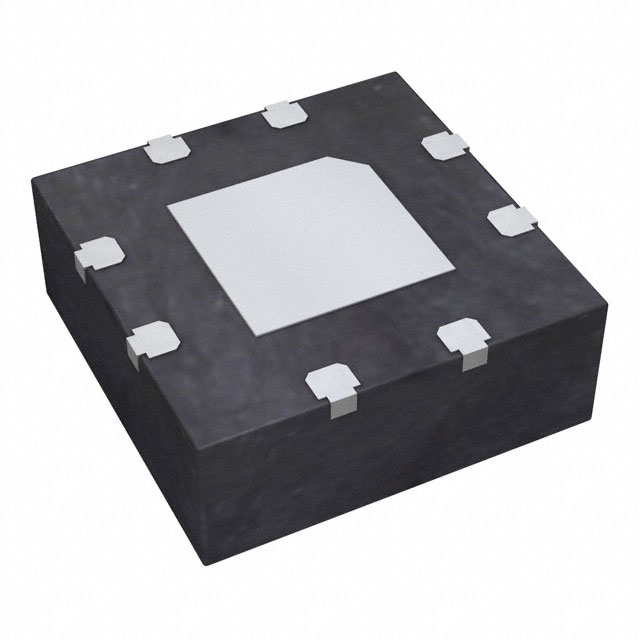

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MADP-011048-TR3000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MADP-011048-TR3000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MADP-011048-TR3000 |
|---|---|
| Manufacturer | Aeroflex (MACOM Technology Solutions) |
| Description | PIN DIODE 4X4MM QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $4.239 | $3.854 | $3.565 | $3.276 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $2.987 | $2.794 | $2.563 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MADP-011048-TR3000 | Manufacturer | Aeroflex (MACOM Technology Solutions) |
|---|---|---|---|
| Description | PIN DIODE 4X4MM QFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14752 pcs | Data sheet | MADP-011048 |
| Category | Discrete Semiconductor Products | Voltage - Peak Reverse (Max) | 80V |
| Supplier Device Package | 8-HQFN (4x4) | Series | - |
| Resistance @ If, F | 500 mOhm @ 10mA, 100MHz | Power Dissipation (Max) | 4.7W |
| Packaging | Cut Tape (CT) | Package / Case | 8-LQFN Exposed Pad |
| Other Names | 1465-1773-1 | Operating Temperature | 175°C (TJ) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | PIN - Anti-Parallel | Detailed Description | RF Diode PIN - Anti-Parallel 80V 3.75A 4.7W 8-HQFN (4x4) |
| Current - Max | 3.75A | Capacitance @ Vr, F | 4pF @ 0V, 100MHz |
