JANTXV2N5339

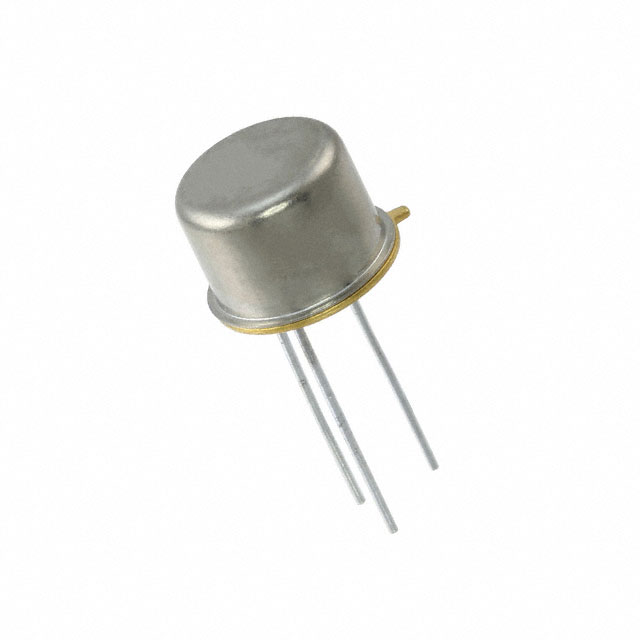

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JANTXV2N5339 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JANTXV2N5339 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JANTXV2N5339 |
|---|---|
| Manufacturer | Aeroflex (MACOM Technology Solutions) |
| Description | TRANS GP BJT NPN 100V 5A 3-PIN T |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $5.151 | $4.682 | $4.33 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | JANTXV2N5339 | Manufacturer | Aeroflex (MACOM Technology Solutions) |
|---|---|---|---|
| Description | TRANS GP BJT NPN 100V 5A 3-PIN T | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 7560 pcs | Data sheet | 2N5339~ |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 100V |
| Vce Saturation (Max) @ Ib, Ic | 1.2V @ 500mA, 5A | Transistor Type | NPN |
| Supplier Device Package | TO-39 (TO-205AD) | Series | Military, MIL-PRF-19500/560 |
| Power - Max | 1W | Packaging | Bulk |
| Package / Case | TO-205AD, TO-39-3 Metal Can | Other Names | 1657-1232 1657-1232-MIL |
| Operating Temperature | -65°C ~ 200°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Frequency - Transition | - | Detailed Description | Bipolar (BJT) Transistor NPN 100V 5A 1W Surface Mount TO-39 (TO-205AD) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 2A, 2V | Current - Collector Cutoff (Max) | 100µA |
| Current - Collector (Ic) (Max) | 5A |
