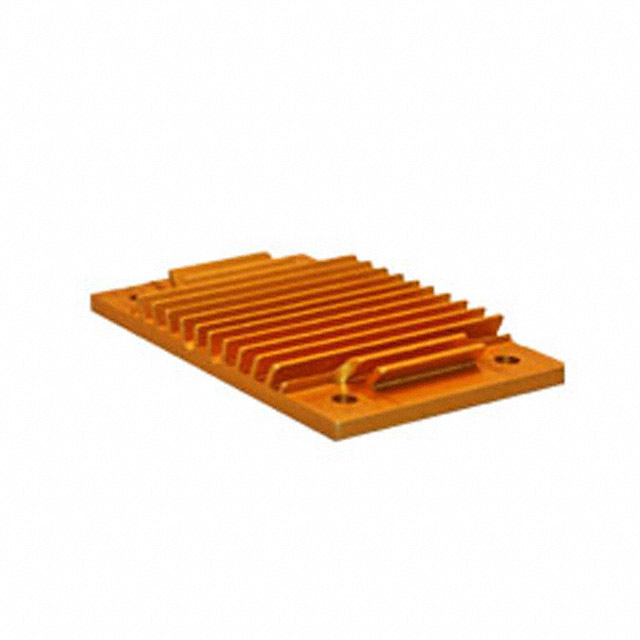

ATS-1138-C1-R0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ATS-1138-C1-R0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ATS-1138-C1-R0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ATS-1138-C1-R0 |
|---|---|
| Manufacturer | Advanced Thermal Solutions, Inc. |
| Description | 1/4 BRICK HEATSINK 37X58X6.1MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.743 | $3.64 | $3.438 | $3.236 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.034 | $2.831 | $2.629 | $2.579 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ATS-1138-C1-R0 | Manufacturer | Advanced Thermal Solutions, Inc. |
|---|---|---|---|
| Description | 1/4 BRICK HEATSINK 37X58X6.1MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14134 pcs | Data sheet | ATS-1138-C1-R0 |
| Category | Fans, Thermal Management | Width | 2.323" (59.00mm) |
| Type | Top Mount | Thermal Resistance @ Natural | - |
| Thermal Resistance @ Forced Air Flow | 9.40°C/W @ 200 LFM | Shape | Rectangular, Angled Fins |
| Series | maxiFLOW | Power Dissipation @ Temperature Rise | - |
| Package Cooled | Quarter Brick DC/DC Converter | Other Names | ATS1498 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Gold Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 6 Weeks |
| Length | 1.457" (37.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.240" (6.10mm) | Diameter | - |
| Detailed Description | Heat Sink Quarter Brick DC/DC Converter Aluminum Top Mount | Attachment Method | Bolt On |
