PDB-C109

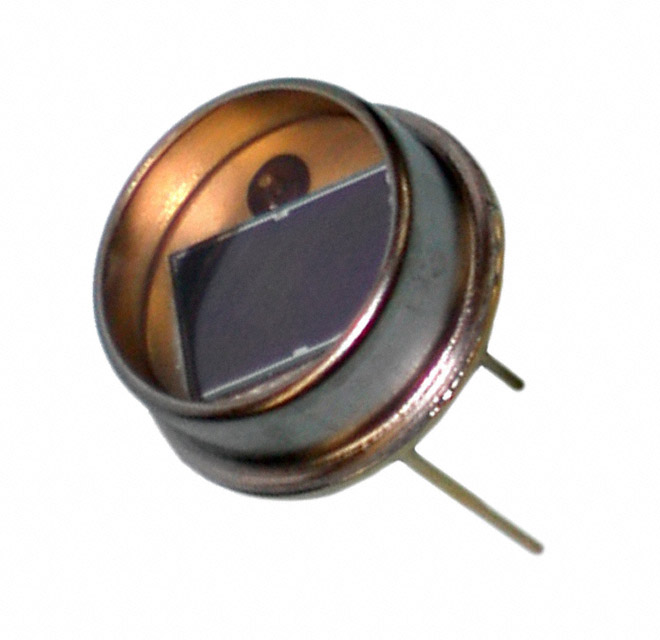

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PDB-C109 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PDB-C109 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PDB-C109 |
|---|---|
| Manufacturer | Advanced Photonix (Luna Optoelectronics) |
| Description | PHOTODIODE BLUE ENH 8.1X5.3 TO-8 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $26.098 | $23.581 | $22.009 | $20.908 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PDB-C109 | Manufacturer | Advanced Photonix (Luna Optoelectronics) |
|---|---|---|---|
| Description | PHOTODIODE BLUE ENH 8.1X5.3 TO-8 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1574 pcs | Data sheet | PDB-C109 |
| Category | Sensors, Transducers | Wavelength | 950nm |
| Voltage - DC Reverse (Vr) (Max) | 75V | Viewing Angle | 79° |
| Spectral Range | 350nm ~ 1100nm | Series | - |
| Responsivity @ nm | 0.17 A/W @ 450nm | Response Time | 13ns |
| Packaging | Bulk | Package / Case | TO-233AA, TO-8-3 Lens Top Metal Can |
| Other Names | 5657A011 PDBC109 PT-PDB-C109 |
Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | PIN | Detailed Description | Photodiode 950nm 13ns 79° TO-233AA, TO-8-3 Lens Top Metal Can |
| Current - Dark (Typ) | 5nA | Color - Enhanced | Blue |
| Active Area | 43mm² |
