Home > Products > Development Boards, Kits, Programmers > Evaluation and Demonstration Boards and Kits > PAC5532EVK1

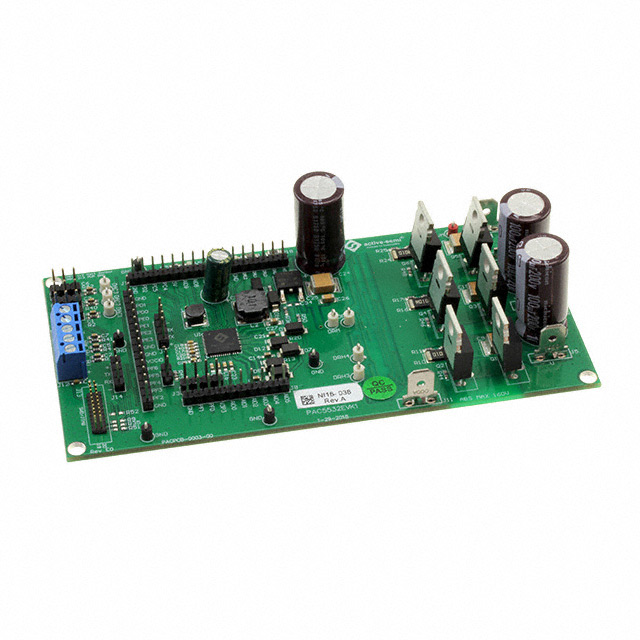

PAC5532EVK1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PAC5532EVK1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PAC5532EVK1
Manufacturer	Active-Semi
Description	EVALUATION TOOL TO PAC5532
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 687 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$57.505

Product parameter
Data sheet

Product parameter

Part Number	PAC5532EVK1	Manufacturer	Active-Semi
Description	EVALUATION TOOL TO PAC5532	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	687 pcs	Data sheet	PAC5532EVK1 User Manual PAC5532 Datasheet PAC55xx Family User Guide PAC5532 Device User Guide
Category	Development Boards, Kits, Programmers	Utilized IC / Part	PAC5532
Type	Power Management	Supplied Contents	Board(s)
Series	-	Secondary Attributes	On-Board LEDs
Primary Attributes	-	Other Names	1488-1173
Moisture Sensitivity Level (MSL)	Not Applicable	Manufacturer Standard Lead Time	2 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Function	Motor Controller/Driver
Embedded	Yes, MCU, 32-Bit	Detailed Description	PAC5532 Motor Controller/Driver Power Management Evaluation Board
