ASPIAIG-H8540-1R5M-T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ASPIAIG-H8540-1R5M-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ASPIAIG-H8540-1R5M-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ASPIAIG-H8540-1R5M-T |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | FIXED IND 1.5UH 7.6A 7.7MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 3000 pcs | 5000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.399 | $0.386 | $0.373 | $0.361 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ASPIAIG-H8540-1R5M-T | Manufacturer | Abracon Corporation |
|---|---|---|---|
| Description | FIXED IND 1.5UH 7.6A 7.7MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58527 pcs | Data sheet | ASPIAIG-H Series Datasheet |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.346" L x 0.335" W (8.80mm x 8.50mm) | Shielding | Shielded |
| Series | ASPIAIG-H8540 | Ratings | AEC-Q200 |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 535-13665-2 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Metal |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 1.5µH |
| Height - Seated (Max) | 0.157" (4.00mm) | Frequency - Self Resonant | 38MHz |
| Detailed Description | 1.5µH Shielded Wirewound Inductor 7.6A 7.7 mOhm Nonstandard | DC Resistance (DCR) | 7.7 mOhm |
| Current Rating | 7.6A | Current - Saturation | 17A |
- Related products
- Related news
Related products
- Part#:
ASPIAIG-H6530-6R8M-T - Manufacturers:
Abracon Corporation - Description:
FIXED IND 6.8UH 4.5A 64MOHM - In Stock:
93222
- Part#:
ASPIAIG-H8540-3R3M-T - Manufacturers:
Abracon Corporation - Description:
FIXED IND 3.3UH 4.9A 19.9MOHM - In Stock:
58565
- Part#:
ASPIAIG-H8540-5R6M-T - Manufacturers:
Abracon Corporation - Description:
FIXED IND 5.6UH 3.9A 30.6MOHM - In Stock:
74210
- Part#:
ASPIAIG-H8540-220M-T - Manufacturers:
Abracon Corporation - Description:
FIXED IND 22UH 2.5A 108.6MOHM - In Stock:
66747
- Part#:
ASPIAIG-H8540-4R7M-T - Manufacturers:
Abracon Corporation - Description:
FIXED IND 4.7UH 4.2A 27.6MOHM - In Stock:
74107
- Part#:
ASPIAIG-H8540-2R2M-T - Manufacturers:
Abracon Corporation - Description:
FIXED IND 2.2UH 6.1A 12MOHM - In Stock:
67142
- Part#:
ASPIAIG-H6530-R68M-T - Manufacturers:
Abracon Corporation - Description:
FIXED IND 0.68UH 13.5A 8.7MOHM - In Stock:
84350
- Part#:
ASPIAIG-H8540-6R8M-T - Manufacturers:
Abracon Corporation - Description:
FIXED IND 6.8UH 3.8A 37.4MOHM - In Stock:
68014
- Part#:

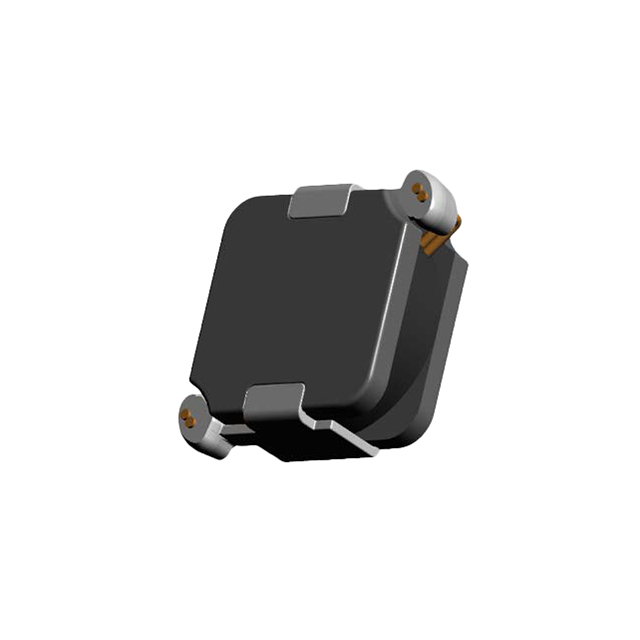

ASPIAIG-H6530-R33M-T - Manufacturers:
