ASMPM-0806-2R2M-T

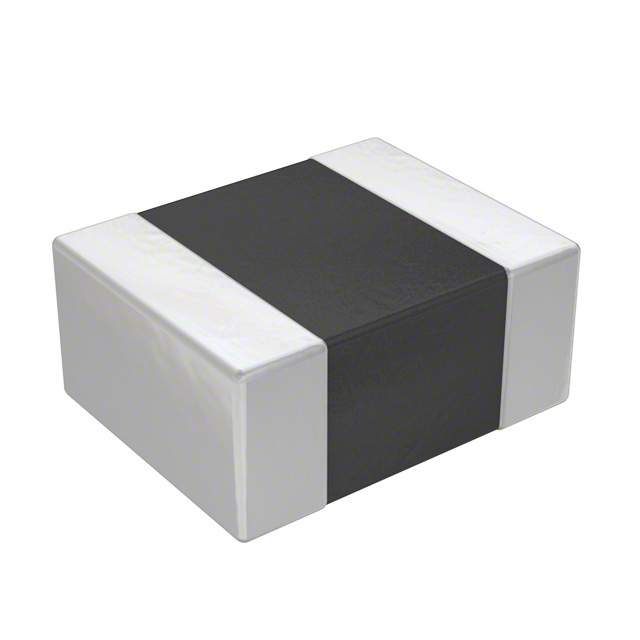

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ASMPM-0806-2R2M-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ASMPM-0806-2R2M-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ASMPM-0806-2R2M-T |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | FIXED IND 2.2UH 1.4A 168MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | 30000 pcs | 75000 pcs |
|---|---|---|---|---|---|
| $0.057 | $0.053 | $0.052 | $0.05 | $0.048 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ASMPM-0806-2R2M-T | Manufacturer | Abracon Corporation |
|---|---|---|---|
| Description | FIXED IND 2.2UH 1.4A 168MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 462989 pcs | Data sheet | ASMPM Series DatasheetPower Inductors Product Info Flyer |
| Category | Inductors, Coils, Chokes | Type | Multilayer |
| Tolerance | ±20% | Supplier Device Package | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | Shielding | Unshielded |
| Series | ASMPM | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | 0806 (2016 Metric) | Other Names | 535-14172-2 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ceramic |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 2.2µH |
| Height - Seated (Max) | 0.039" (1.00mm) | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 2.2µH Unshielded Multilayer Inductor 1.6A 168 mOhm Max 0806 (2016 Metric) |
| DC Resistance (DCR) | 168 mOhm Max | Current Rating | 1.6A |
| Current - Saturation | 2A |
