APAKN1304-S5517-T

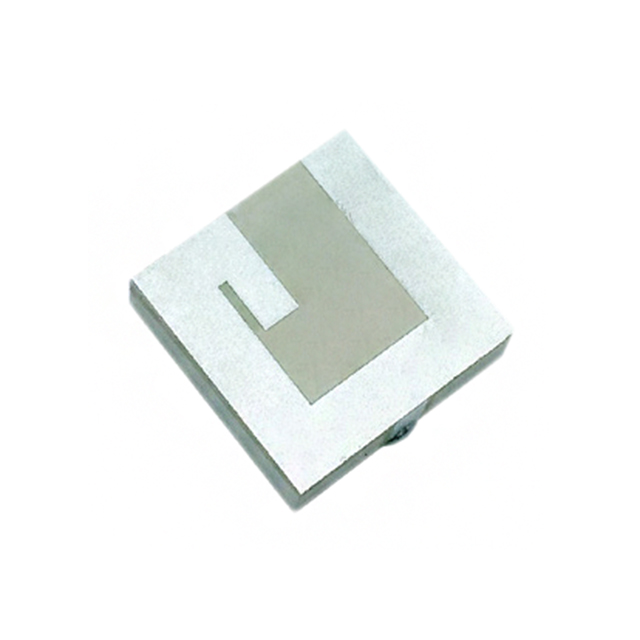

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APAKN1304-S5517-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APAKN1304-S5517-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APAKN1304-S5517-T |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | RF ANT 5GHZ CER PATCH SOLDER SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $2.577 | $2.318 | $2.112 | $1.906 | ||
| 250 pcs | 500 pcs | 2000 pcs | |||
| $1.751 | $1.597 | $1.339 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | APAKN1304-S5517-T | Manufacturer | Abracon Corporation |
|---|---|---|---|
| Description | RF ANT 5GHZ CER PATCH SOLDER SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23592 pcs | Data sheet | APAKN1304-S5517-T Datasheet |
| Category | RF/IF and RFID | VSWR | - |
| Termination | Solder | Series | - |
| Return Loss | -10dB | Other Names | 535-14504 |
| Number of Bands | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Height (Max) | 0.157" (4.00mm) | Gain | 6dBi |
| Frequency Range | 5.15GHz ~ 5.885GHz | Frequency Group | SHF (f > 4 GHz) |
| Frequency (Center/Band) | 5GHz | Features | - |
| Detailed Description | 5GHz Galileo, GLONASS, GNSS, GPS Ceramic Patch RF Antenna 5.15GHz ~ 5.885GHz 6dBi Solder Surface Mount | Applications | Galileo, GLONASS, GNSS, GPS |
| Antenna Type | Ceramic Patch |
