AISM-1812-R82M-T

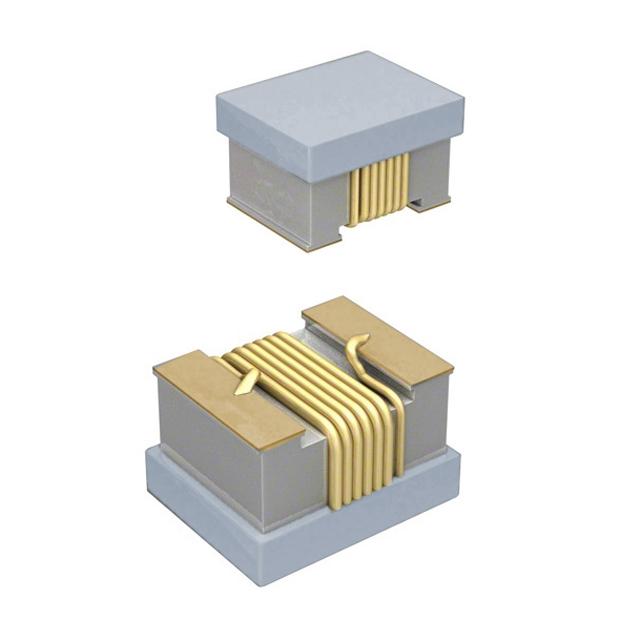

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AISM-1812-R82M-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AISM-1812-R82M-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AISM-1812-R82M-T |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | FIXED IND 820NH 475MA 500 MOHM |
| Lead Free Status / RoHS Status | Request inventory verification / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.144 | $0.129 | $0.089 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AISM-1812-R82M-T | Manufacturer | Abracon Corporation |
|---|---|---|---|
| Description | FIXED IND 820NH 475MA 500 MOHM | Lead Free Status / RoHS Status | Request inventory verification / RoHS Compliant |
| Quantity Available | 225061 pcs | Data sheet | AISM-1812 SeriesAISM-1812 Drawing |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | Shielding | Unshielded |
| Series | AISM-1812 | Ratings | - |
| Q @ Freq | 40 @ 25.2MHz | Packaging | Cut Tape (CT) |
| Package / Case | 1812 (4532 Metric) | Other Names | AISM-1812-R82M-TCT |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 21 Weeks | Lead Free Status / RoHS Status | Request inventory verification / RoHS Compliant |
| Inductance Frequency - Test | 25.2MHz | Inductance | 820nH |
| Height - Seated (Max) | 0.110" (2.80mm) | Frequency - Self Resonant | 130MHz |
| Detailed Description | 820nH Unshielded Wirewound Inductor 475mA 500 mOhm Max 1812 (4532 Metric) | DC Resistance (DCR) | 500 mOhm Max |
| Current Rating | 475mA | Current - Saturation | - |
