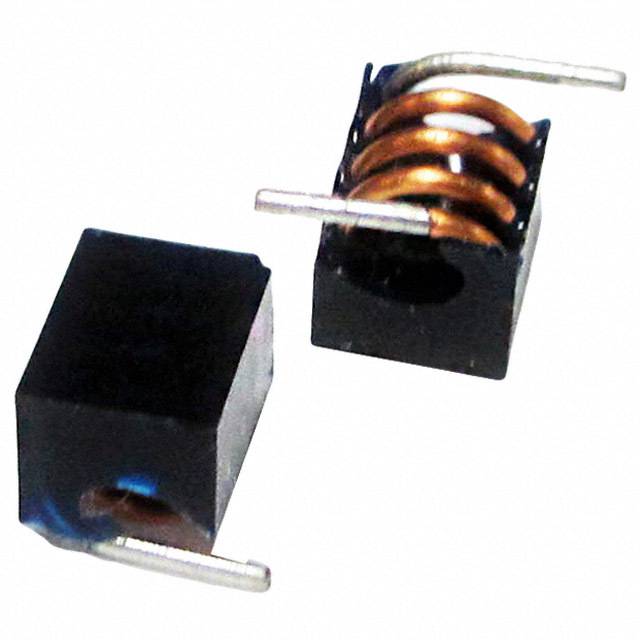

AIAC-1812-R12J-T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AIAC-1812-R12J-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AIAC-1812-R12J-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AIAC-1812-R12J-T |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | FIXED IND 120NH 2.2A 11.1 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 3000 pcs | 5000 pcs | 10000 pcs | 25000 pcs |
|---|---|---|---|---|---|
| $0.096 | $0.09 | $0.088 | $0.085 | $0.082 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | AIAC-1812-R12J-T | Manufacturer | Abracon Corporation |
|---|---|---|---|
| Description | FIXED IND 120NH 2.2A 11.1 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 262960 pcs | Data sheet | AIAC-1812C Pkg DrawingAIAC-1812 |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±5% | Supplier Device Package | - |
| Size / Dimension | 0.185" L x 0.138" W (4.70mm x 3.50mm) | Shielding | Unshielded |
| Series | AIAC-1812 | Ratings | - |
| Q @ Freq | 100 @ 150MHz | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 535-11999-2 AIAC1812R12JT |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Air |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 150MHz | Inductance | 120nH |
| Height - Seated (Max) | 0.146" (3.70mm) | Frequency - Self Resonant | 1.1GHz |
| Detailed Description | 120nH Unshielded Wirewound Inductor 2.2A 11.1 mOhm Max Nonstandard | DC Resistance (DCR) | 11.1 mOhm Max |
| Current Rating | 2.2A | Current - Saturation | - |
