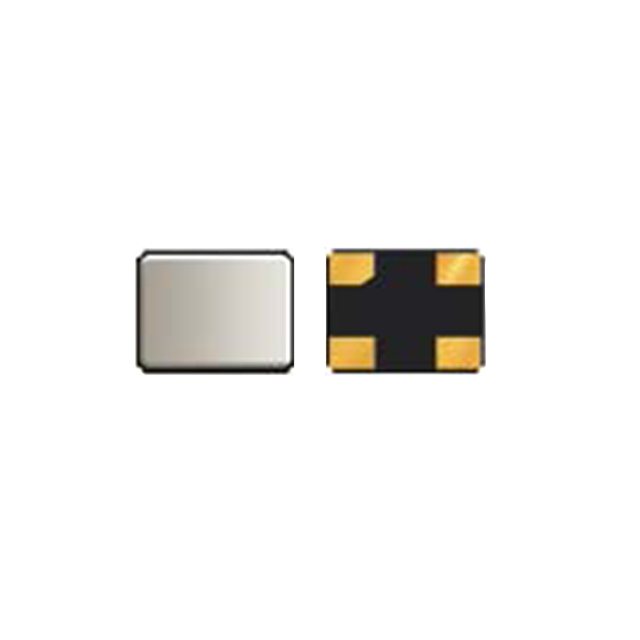

AAH-438-28.63636MHZ-T3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AAH-438-28.63636MHZ-T3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AAH-438-28.63636MHZ-T3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AAH-438-28.63636MHZ-T3 |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | CRYSTAL 28.63636MHZ 12PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $0.282 | $0.249 | $0.233 | |||
| 100 pcs | 500 pcs | 1000 pcs | |||
| $0.206 | $0.195 | $0.162 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AAH-438-28.63636MHZ-T3 | Manufacturer | Abracon Corporation |
|---|---|---|---|
| Description | CRYSTAL 28.63636MHZ 12PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 118006 pcs | Data sheet | AAH-438-28.63636MHz-T3 |
| Category | Crystals, Oscillators, Resonators | Type | MHz Crystal |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | Series | AAH |
| Ratings | AEC-Q200 | Packaging | Original-Reel® |
| Package / Case | 4-SMD, No Lead | Other Names | 535-13680-6 |
| Operating Temperature | -40°C ~ 125°C | Operating Mode | Fundamental |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 17 Weeks | Load Capacitance | 12pF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.032" (0.80mm) |
| Frequency Tolerance | ±20ppm | Frequency Stability | ±50ppm |
| Frequency | 28.63636MHz | ESR (Equivalent Series Resistance) | 25 Ohms |
| Detailed Description | 28.63636MHz ±20ppm Crystal 12pF 25 Ohms 4-SMD, No Lead |
