HF20G

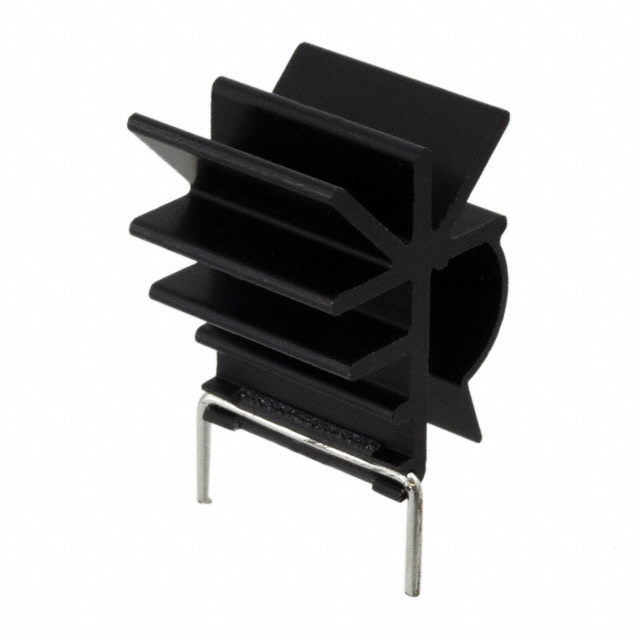

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HF20G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HF20G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HF20G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK TO-220 TAB/CLIP-ON |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.068 | $1.039 | $1.011 | $0.955 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.898 | $0.842 | $0.814 | $0.73 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HF20G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TO-220 TAB/CLIP-ON | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 47091 pcs | Data sheet | HF(20,35)GStandard Heatsinks Catalog |
| Category | Fans, Thermal Management | Width | 1.102" (28.00mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 13.10°C/W |
| Thermal Resistance @ Forced Air Flow | 6.00°C/W @ 400 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 1.0W @ 20°C |
| Package Cooled | TO-220 | Other Names | 033697 437407 HF20 HF20-ND |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 0.790" (20.07mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.787" (19.99mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Aluminum 1.0W @ 20°C Board Level, Vertical | Attachment Method | Clip and PC Pin |
