7142DG

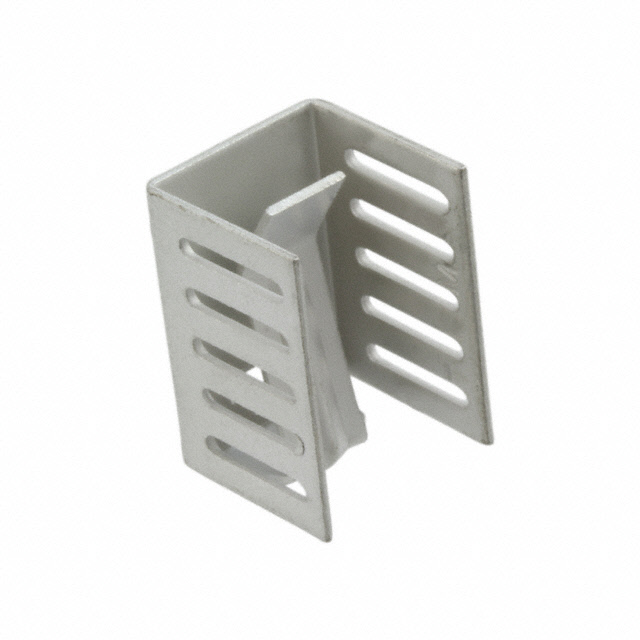

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7142DG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 7142DG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 7142DG |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK TO-220 TIN CLIP-ON 21MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.379 | $0.36 | $0.35 | $0.341 | $0.322 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.303 | $0.284 | $0.265 | $0.255 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 7142DG | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TO-220 TIN CLIP-ON 21MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83244 pcs | Data sheet | Standard Heatsinks Catalog7142DG |
| Category | Fans, Thermal Management | Width | 0.520" (13.21mm) |
| Type | Board Level | Thermal Resistance @ Natural | 20.30°C/W |
| Thermal Resistance @ Forced Air Flow | 8.00°C/W @ 400 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 1.0W @ 30°C |
| Package Cooled | TO-220 | Other Names | 043240 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Tin |
| Material | Copper | Manufacturer Standard Lead Time | 9 Weeks |
| Length | 0.780" (19.81mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.515" (13.08mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Copper 1.0W @ 30°C Board Level | Attachment Method | Clip and Board Locks |
