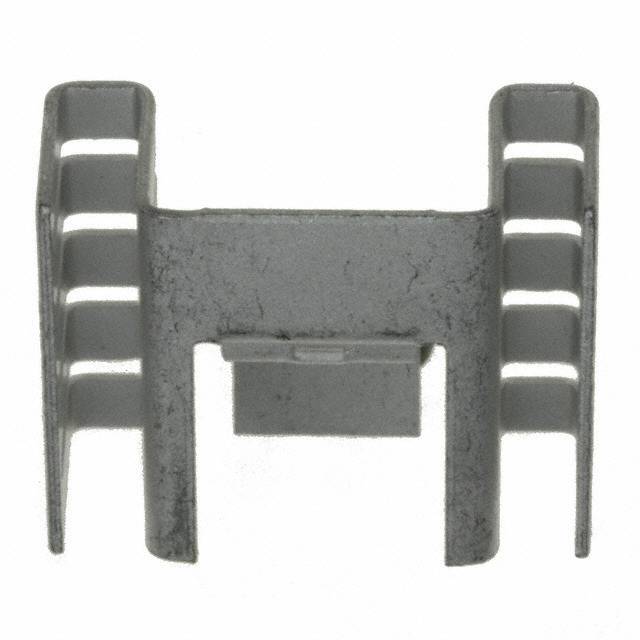

7109DG
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7109DG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 7109DG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 7109DG |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | TOP MOUNT HEATSINK .45" D2PAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.458 | $0.435 | $0.424 | $0.412 | $0.389 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.366 | $0.343 | $0.321 | $0.309 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 7109DG | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | TOP MOUNT HEATSINK .45" D2PAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74617 pcs | Data sheet | Standard Heatsinks Catalog7109DG |
| Category | Fans, Thermal Management | Width | 1.000" (25.40mm) |
| Type | Top Mount | Thermal Resistance @ Natural | 11.00°C/W |
| Thermal Resistance @ Forced Air Flow | 3.00°C/W @ 300 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 2.0W @ 30°C |
| Package Cooled | TO-263 (D²Pak) | Other Names | 042188 7109DG-ND HS406 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Tin |
| Material | Copper | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 0.763" (19.38mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.450" (11.43mm) | Diameter | - |
| Detailed Description | Heat Sink TO-263 (D²Pak) Copper 2.0W @ 30°C Top Mount | Attachment Method | SMD Pad |
