7106DG

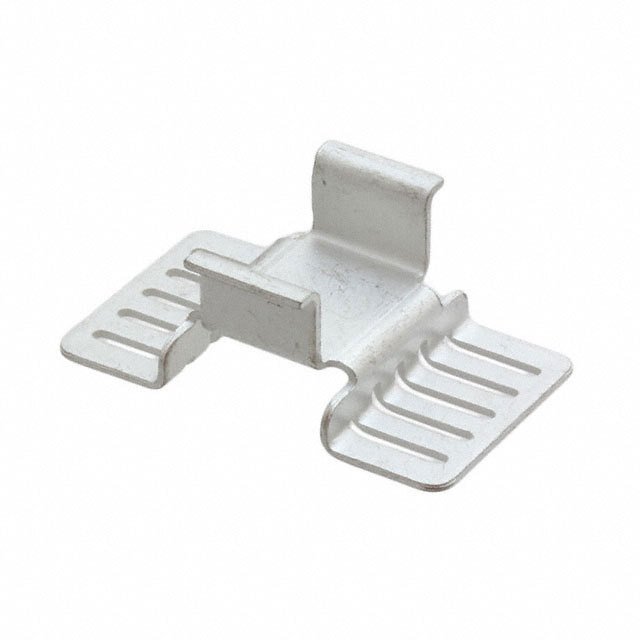

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7106DG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 7106DG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 7106DG |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | BOARD LEVEL HEATSINK .375" D2PAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.508 | $0.484 | $0.472 | $0.459 | $0.433 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.408 | $0.382 | $0.357 | $0.344 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 7106DG | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | BOARD LEVEL HEATSINK .375" D2PAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69763 pcs | Data sheet | Standard Heatsinks Catalog7106DG |
| Category | Fans, Thermal Management | Width | 1.020" (25.91mm) |
| Type | Top Mount | Thermal Resistance @ Natural | - |
| Thermal Resistance @ Forced Air Flow | 5.00°C/W @ 400 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 2.0W @ 40°C |
| Package Cooled | TO-263 (D²Pak), PowerSO-10 (MO-184), SO-10 | Other Names | 042187 7106DG-ND HS412 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Tin |
| Material | Copper | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 0.590" (15.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.375" (9.52mm) | Diameter | - |
| Detailed Description | Heat Sink TO-263 (D²Pak), PowerSO-10 (MO-184), SO-10 Copper 2.0W @ 40°C Top Mount | Attachment Method | SMD Pad |
