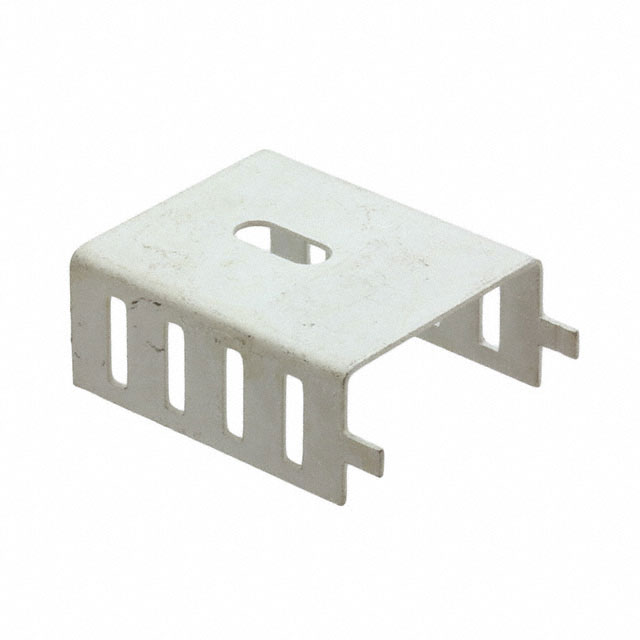

6230DG (COPPER)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 6230DG (COPPER) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 6230DG (COPPER) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 6230DG (COPPER) |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK COPPER TO-220 W/TABS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.973 | $0.946 | $0.921 | $0.869 | $0.818 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.767 | $0.742 | $0.665 | $0.652 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 6230DG (COPPER) | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK COPPER TO-220 W/TABS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 55285 pcs | Data sheet | Standard Heatsinks Catalog |
| Category | Fans, Thermal Management | Width | 1.000" (25.40mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 12.50°C/W |
| Thermal Resistance @ Forced Air Flow | 6.00°C/W @ 300 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 1.0W @ 20°C |
| Package Cooled | TO-220 | Other Names | 041726 6230DG (COPPER)-ND 6230DG(COPPER) |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Tin |
| Material | Copper | Manufacturer Standard Lead Time | 9 Weeks |
| Length | 1.180" (29.97mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.500" (12.70mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Copper 1.0W @ 20°C Board Level, Vertical | Attachment Method | Bolt On and PC Pin |
