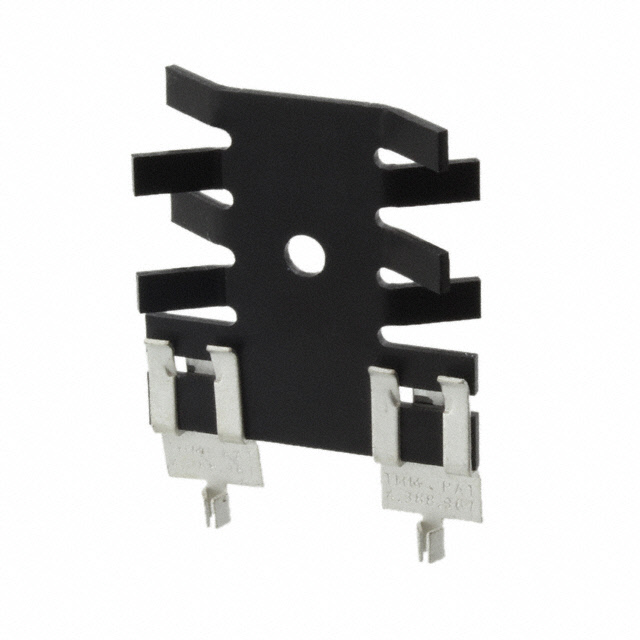

6225B-MTG
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 6225B-MTG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 6225B-MTG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 6225B-MTG |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK TO-220 TAB BLACK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.546 | $0.518 | $0.504 | $0.49 | $0.463 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.436 | $0.409 | $0.381 | $0.368 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 6225B-MTG | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TO-220 TAB BLACK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86277 pcs | Data sheet | Standard Heatsinks Catalog6225B‐MTG |
| Category | Fans, Thermal Management | Width | 1.024" (26.00mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 15.00°C/W |
| Thermal Resistance @ Forced Air Flow | 3.00°C/W @ 700 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 2.0W @ 40°C |
| Package Cooled | TO-220 | Other Names | 042056 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 1.070" (27.18mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.315" (8.00mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Aluminum 2.0W @ 40°C Board Level, Vertical | Attachment Method | Bolt On and PC Pin |
