6222BG

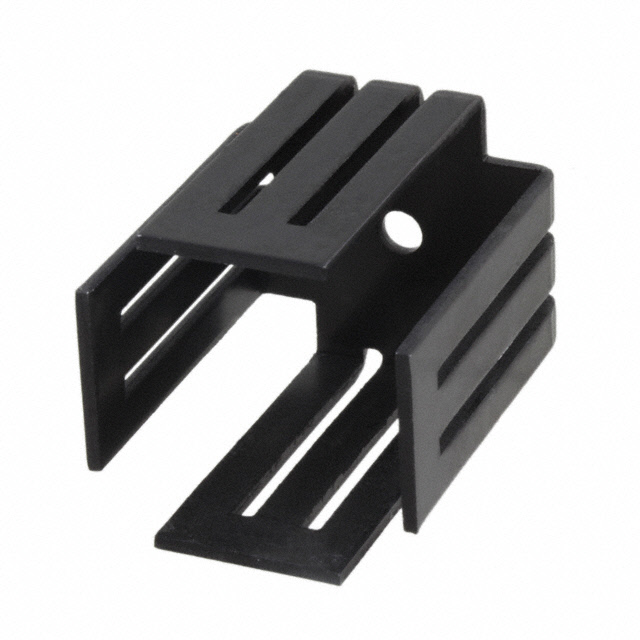

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 6222BG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 6222BG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 6222BG |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | BRIDGE RECTIFIER HEATSINK 0.142" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.501 | $0.477 | $0.464 | $0.452 | $0.427 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.402 | $0.377 | $0.351 | $0.339 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 6222BG | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | BRIDGE RECTIFIER HEATSINK 0.142" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61523 pcs | Data sheet | Standard Heatsinks Catalog622xBG |
| Category | Fans, Thermal Management | Width | 1.060" (26.92mm) |
| Type | Board Level | Thermal Resistance @ Natural | 9.40°C/W |
| Thermal Resistance @ Forced Air Flow | 3.00°C/W @ 400 LFM | Shape | Square, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 3.0W @ 30°C |
| Package Cooled | Bridge Rectifiers | Other Names | 033908 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 9 Weeks |
| Length | 1.060" (26.92mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 1.250" (31.75mm) | Diameter | - |
| Detailed Description | Heat Sink Bridge Rectifiers Aluminum 3.0W @ 30°C Board Level | Attachment Method | Bolt On |
