593202B03500G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 593202B03500G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 593202B03500G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 593202B03500G |
|---|---|
| Manufacturer | Aavid Thermalloy |

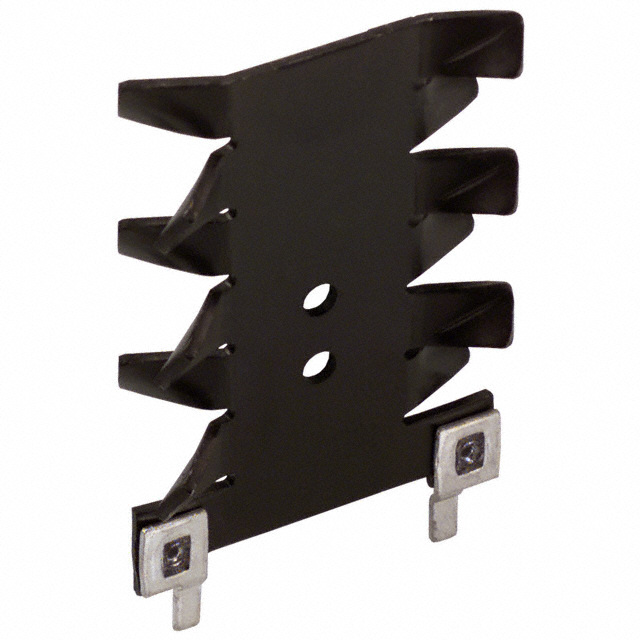

| Description | HEATSINK TO-220 VERT MNT W/TABS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.315 | $0.301 | $0.286 | $0.278 | $0.275 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.256 | $0.241 | $0.218 | $0.211 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 593202B03500G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TO-220 VERT MNT W/TABS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 103722 pcs | Data sheet | 593202B03x00GStandard Heatsinks Catalog |
| Category | Fans, Thermal Management | Width | 1.380" (35.05mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 10.40°C/W |
| Thermal Resistance @ Forced Air Flow | 5.00°C/W @ 200 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 6.0W @ 60°C |
| Package Cooled | TO-220 | Other Names | 042686 HS373 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 2.000" (50.80mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.480" (12.19mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Aluminum 6.0W @ 60°C Board Level, Vertical | Attachment Method | Bolt On and PC Pin |
