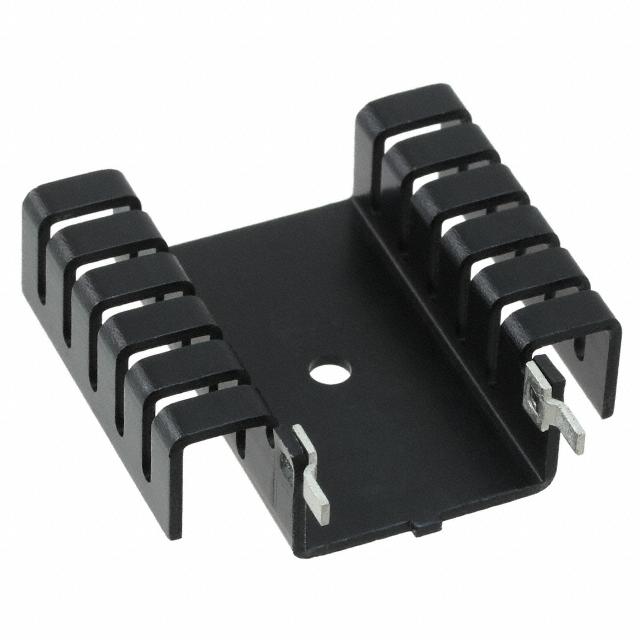

593101B03600G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 593101B03600G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 593101B03600G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 593101B03600G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK TO-218/TO-247 TAB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.626 | $0.594 | $0.579 | $0.563 | $0.532 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.50 | $0.469 | $0.438 | $0.422 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 593101B03600G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TO-218/TO-247 TAB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 81470 pcs | Data sheet | 593101B03600GStandard Heatsinks Catalog |
| Category | Fans, Thermal Management | Width | 1.700" (43.18mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 8.60°C/W |
| Thermal Resistance @ Forced Air Flow | 4.00°C/W @ 300 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 6.0W @ 50°C |
| Package Cooled | TO-218, TO-247 | Other Names | 043129 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 1.640" (41.66mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.500" (12.70mm) | Diameter | - |
| Detailed Description | Heat Sink TO-218, TO-247 Aluminum 6.0W @ 50°C Board Level, Vertical | Attachment Method | Bolt On and PC Pin |
