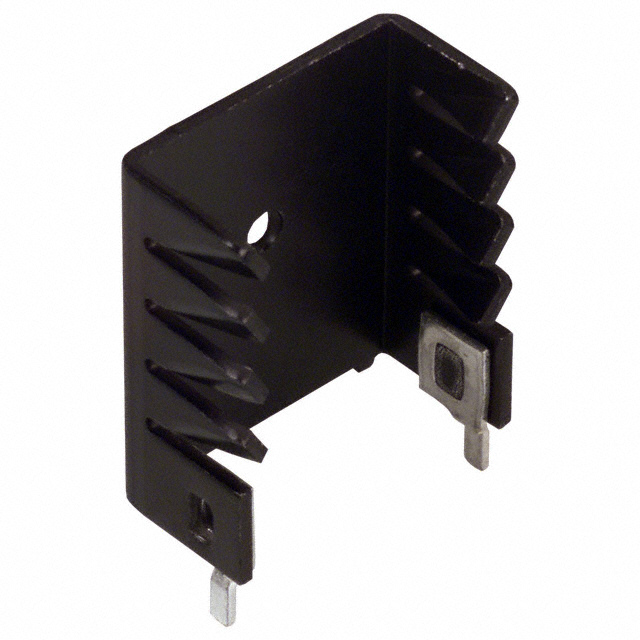

593002B03400G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 593002B03400G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 593002B03400G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 593002B03400G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK TWISTED FIN TO-220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.262 | $0.251 | $0.238 | $0.232 | $0.229 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.213 | $0.201 | $0.182 | $0.176 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 593002B03400G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TWISTED FIN TO-220 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 116508 pcs | Data sheet | Standard Heatsinks Catalog59xx02B0xx00G |
| Category | Fans, Thermal Management | Width | 0.942" (23.93mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 13.40°C/W |
| Thermal Resistance @ Forced Air Flow | 4.00°C/W @ 600 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 1.0W @ 20°C |
| Package Cooled | TO-220 | Other Names | 041979 HS336 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 1.180" (29.97mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.500" (12.70mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Aluminum 1.0W @ 20°C Board Level, Vertical | Attachment Method | Bolt On and PC Pin |
