590102B03600G

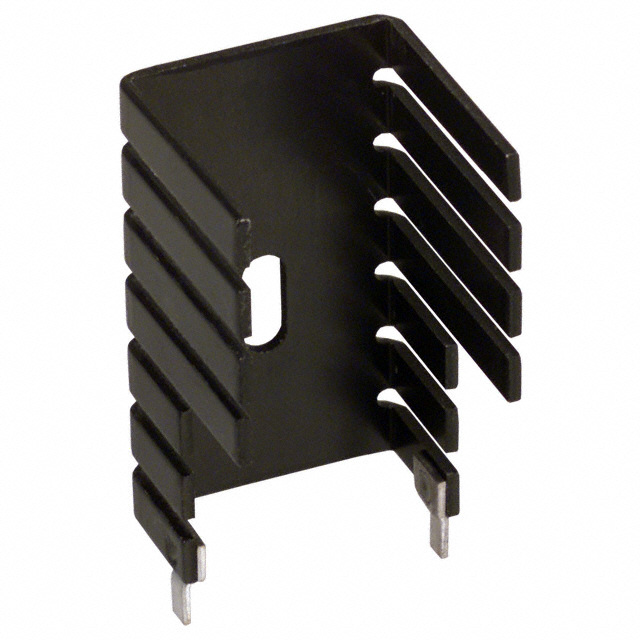

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 590102B03600G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 590102B03600G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 590102B03600G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK TO-220 W/TABS 1.67"HIGH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 240 pcs |
|---|---|---|---|---|---|
| $0.48 | $0.455 | $0.443 | $0.431 | $0.407 | |
| 480 pcs | 720 pcs | 1200 pcs | 5040 pcs | ||
| $0.383 | $0.359 | $0.335 | $0.323 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 590102B03600G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TO-220 W/TABS 1.67"HIGH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67073 pcs | Data sheet | Standard Heatsinks Catalog590102B03600G |
| Category | Fans, Thermal Management | Width | 1.000" (25.40mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 10.00°C/W |
| Thermal Resistance @ Forced Air Flow | 4.00°C/W @ 300 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 2.5W @ 30°C |
| Package Cooled | TO-220 | Other Names | 043224 HS370 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 1.675" (42.55mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 1.000" (25.40mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Aluminum 2.5W @ 30°C Board Level, Vertical | Attachment Method | Bolt On and PC Pin |
