576802B03900G

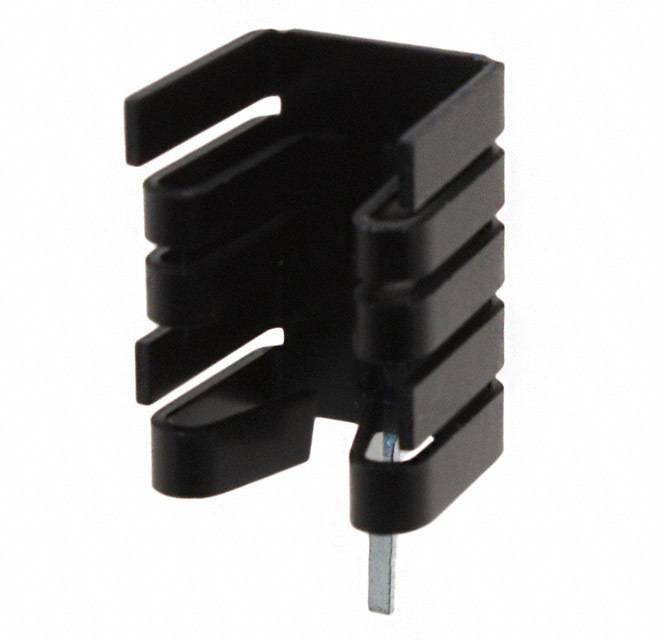

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 576802B03900G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 576802B03900G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 576802B03900G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK TO220 CLIPON W/TAB.75" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.202 | $0.192 | $0.183 | $0.178 | $0.175 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.163 | $0.154 | $0.139 | $0.135 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 576802B03900G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TO220 CLIPON W/TAB.75" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 155734 pcs | Data sheet | Standard Heatsinks Catalog576802B0xx00G |
| Category | Fans, Thermal Management | Width | 0.500" (12.70mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 27.30°C/W |
| Thermal Resistance @ Forced Air Flow | 7.00°C/W @ 400 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 1.0W @ 30°C |
| Package Cooled | TO-220, TO-262 | Other Names | 041928 HS365 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 0.750" (19.05mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.500" (12.70mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220, TO-262 Aluminum 1.0W @ 30°C Board Level, Vertical | Attachment Method | Clip and PC Pin |
