574902B03700G

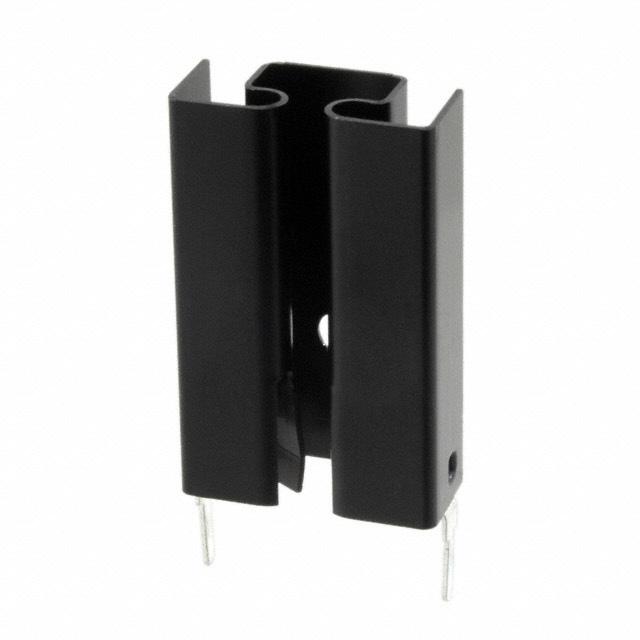

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 574902B03700G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 574902B03700G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 574902B03700G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK TO-220 CLIP-ON/TABS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.257 | $0.245 | $0.232 | $0.226 | $0.223 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.208 | $0.196 | $0.177 | $0.171 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 574902B03700G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TO-220 CLIP-ON/TABS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 124838 pcs | Data sheet | Standard Heatsinks Catalog57(4,8)x02B Series |
| Category | Fans, Thermal Management | Width | 0.860" (21.84mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 16.00°C/W |
| Thermal Resistance @ Forced Air Flow | 6.00°C/W @ 400 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 2.5W @ 40°C |
| Package Cooled | TO-220 | Other Names | 042683 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 1.375" (34.93mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.395" (10.03mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Aluminum 2.5W @ 40°C Board Level, Vertical | Attachment Method | Clip and PC Pin |
