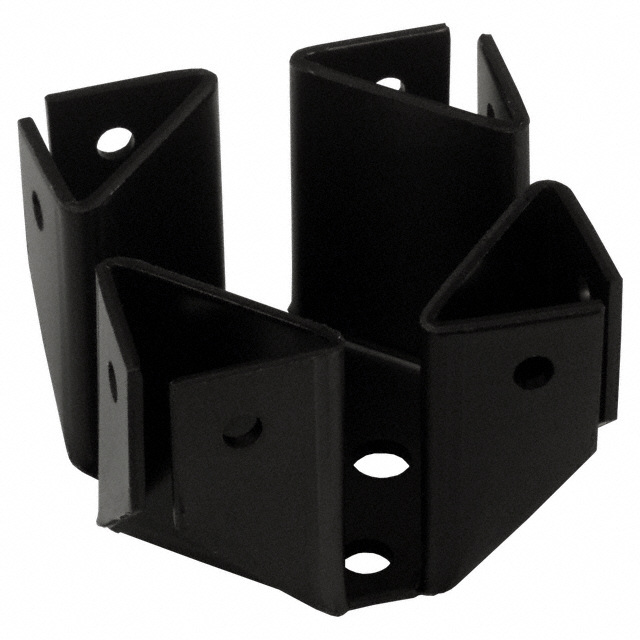

569003B00000G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 569003B00000G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 569003B00000G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 569003B00000G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | COOLER FOR TO-3 20 WATTS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.921 | $0.898 | $0.874 | $0.825 | $0.777 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.728 | $0.704 | $0.631 | $0.619 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 569003B00000G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | COOLER FOR TO-3 20 WATTS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53946 pcs | Data sheet | 5690xxB00000GStandard Heatsinks Catalog |
| Category | Fans, Thermal Management | Width | 1.830" (46.48mm) |
| Type | Board Level | Thermal Resistance @ Natural | 5.50°C/W |
| Thermal Resistance @ Forced Air Flow | 1.50°C/W @ 500 LFM | Shape | Square, Pin Fins |
| Series | - | Power Dissipation @ Temperature Rise | 12.0W @ 60°C |
| Package Cooled | TO-3 | Other Names | 002193 569003B00000 5690B-3 690-3B 7002B-2 HS110-3 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 1.830" (46.48mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 1.310" (33.27mm) | Diameter | - |
| Detailed Description | Heat Sink TO-3 Aluminum 12.0W @ 60°C Board Level | Attachment Method | Bolt On |
