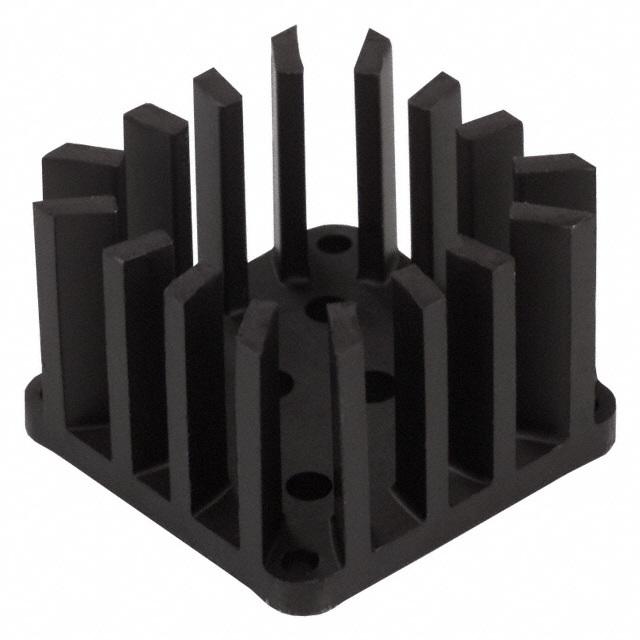

568303B00000G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 568303B00000G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 568303B00000G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 568303B00000G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK TO-3 1.25" 25WATT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.229 | $2.168 | $2.048 | $1.927 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.807 | $1.686 | $1.566 | $1.536 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 568303B00000G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TO-3 1.25" 25WATT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19782 pcs | Data sheet | 568x0xB00000G |
| Category | Fans, Thermal Management | Width | 1.810" (45.97mm) |
| Type | Board Level | Thermal Resistance @ Natural | 5.40°C/W |
| Thermal Resistance @ Forced Air Flow | 2.50°C/W @ 200 LFM | Shape | Square |
| Series | - | Power Dissipation @ Temperature Rise | 5.0W @ 30°C |
| Package Cooled | TO-3 | Other Names | 5000-0125-2 5000-0125-3 507903Q00000 568303B00000 6354B-2 HS103-1.25 HS103-1.25-ND HS531 |
| Material Finish | Black Anodized | Material | Aluminum |
| Manufacturer Standard Lead Time | 8 Weeks | Length | 1.810" (45.97mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Off Base (Height of Fin) | 1.250" (31.75mm) |
| Diameter | - | Detailed Description | Heat Sink TO-3 Aluminum 5.0W @ 30°C Board Level |
| Attachment Method | Bolt On |
