533802B02500G

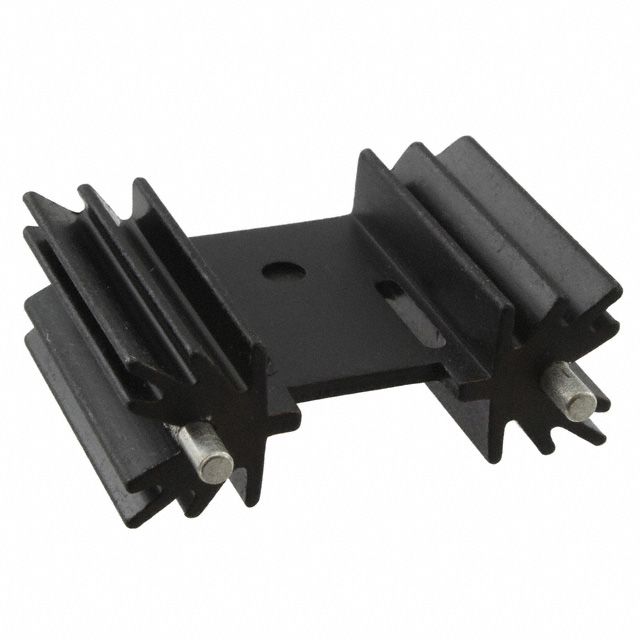

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 533802B02500G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 533802B02500G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 533802B02500G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | BOARD LEVEL HEAT SINK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.708 | $0.671 | $0.653 | $0.636 | $0.60 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.565 | $0.53 | $0.494 | $0.477 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 533802B02500G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | BOARD LEVEL HEAT SINK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66350 pcs | Data sheet | Standard Heatsinks Catalog533802B02500G |
| Category | Fans, Thermal Management | Width | 1.375" (34.93mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 13.00°C/W |
| Thermal Resistance @ Forced Air Flow | 4.00°C/W @ 700 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 3.0W @ 50°C |
| Package Cooled | TO-220 | Other Names | 041809 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 1.000" (25.40mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.500" (12.70mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Aluminum 3.0W @ 50°C Board Level, Vertical | Attachment Method | PC Pin |
