533402B02552G

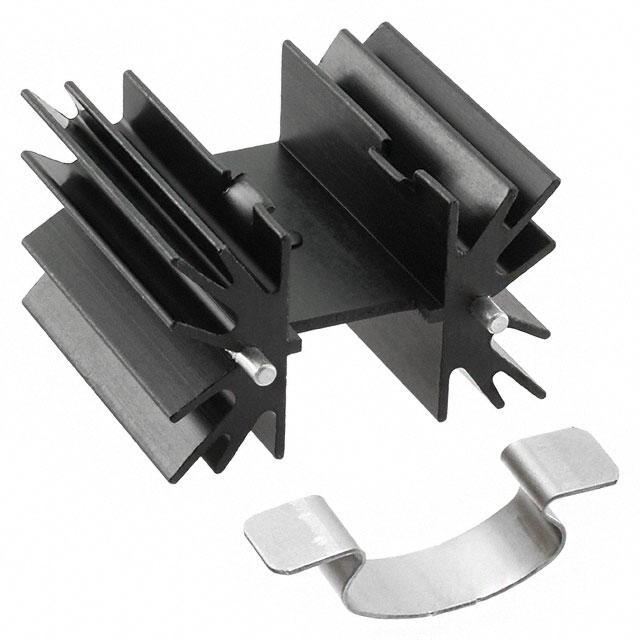

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 533402B02552G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 533402B02552G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 533402B02552G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK TO-220 SOLDERPIN/CLIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.863 | $0.84 | $0.817 | $0.772 | $0.726 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.681 | $0.658 | $0.59 | $0.579 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 533402B02552G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TO-220 SOLDERPIN/CLIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 54175 pcs | Data sheet | Standard Heatsinks Catalog533xx2Bx552G |
| Category | Fans, Thermal Management | Width | 1.650" (41.91mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 5.00°C/W |
| Thermal Resistance @ Forced Air Flow | 2.00°C/W @ 500 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 8.0W @ 40°C |
| Package Cooled | TO-220 | Other Names | 001854 042116 533402B02552 533402B02552-ND |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 1.500" (38.10mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 1.000" (25.40mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Aluminum 8.0W @ 40°C Board Level, Vertical | Attachment Method | Clip and PC Pin |
