530714B00000G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 530714B00000G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 530714B00000G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 530714B00000G |
|---|---|
| Manufacturer | Aavid Thermalloy |

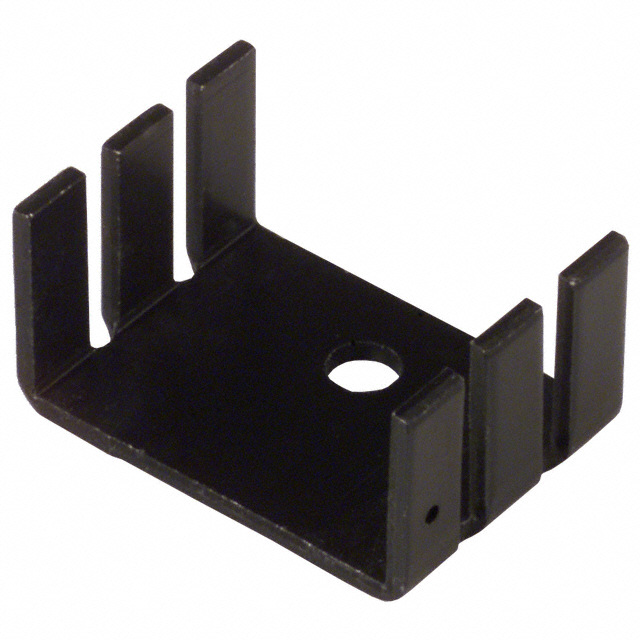

| Description | HEATSINK TO-220 LIGHTWEIGHT .5" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.251 | $0.241 | $0.228 | $0.223 | $0.219 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.204 | $0.192 | $0.174 | $0.168 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 530714B00000G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TO-220 LIGHTWEIGHT .5" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 111921 pcs | Data sheet | Standard Heatsinks Catalog5yyy1xB0xx00G |
| Category | Fans, Thermal Management | Width | 1.000" (25.40mm) |
| Type | Board Level | Thermal Resistance @ Natural | 20.30°C/W |
| Thermal Resistance @ Forced Air Flow | 4.00°C/W @ 700 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 2.0W @ 40°C |
| Package Cooled | TO-220 | Other Names | 001733 530714B00000 6107B-14 HS189 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 0.710" (18.03mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.500" (12.70mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Aluminum 2.0W @ 40°C Board Level | Attachment Method | Bolt On |
