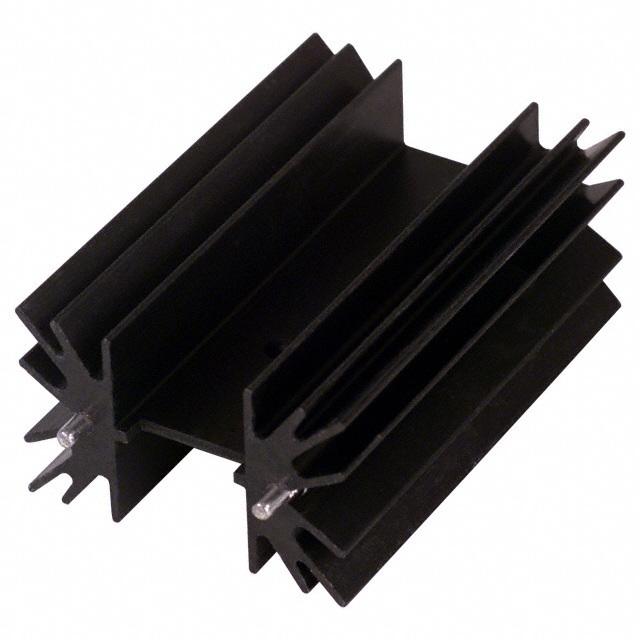

530001B02500G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 530001B02500G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 530001B02500G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 530001B02500G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK TO-218 10W H=2.5" BLK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.663 | $0.63 | $0.614 | $0.597 | $0.564 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.531 | $0.498 | $0.464 | $0.448 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 530001B02500G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TO-218 10W H=2.5" BLK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70631 pcs | Data sheet | Standard Heatsinks Catalog5yyy0(1,2)B0xx00G |
| Category | Fans, Thermal Management | Width | 1.650" (41.91mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 8.00°C/W |
| Thermal Resistance @ Forced Air Flow | 2.00°C/W @ 300 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 20.0W @ 60°C |
| Package Cooled | TO-218 | Other Names | 042663 HS385 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 2.500" (63.50mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 1.000" (25.40mm) | Diameter | - |
| Detailed Description | Heat Sink TO-218 Aluminum 20.0W @ 60°C Board Level, Vertical | Attachment Method | Bolt On and PC Pin |
